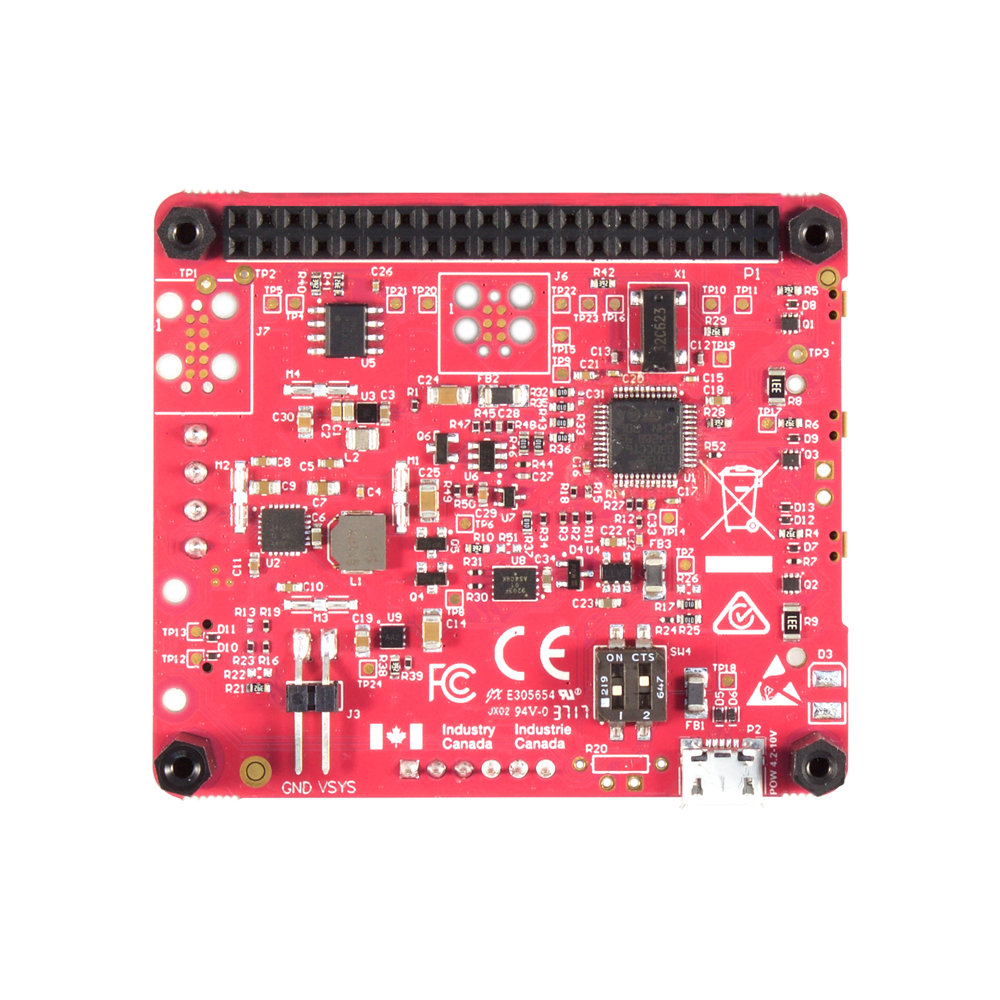

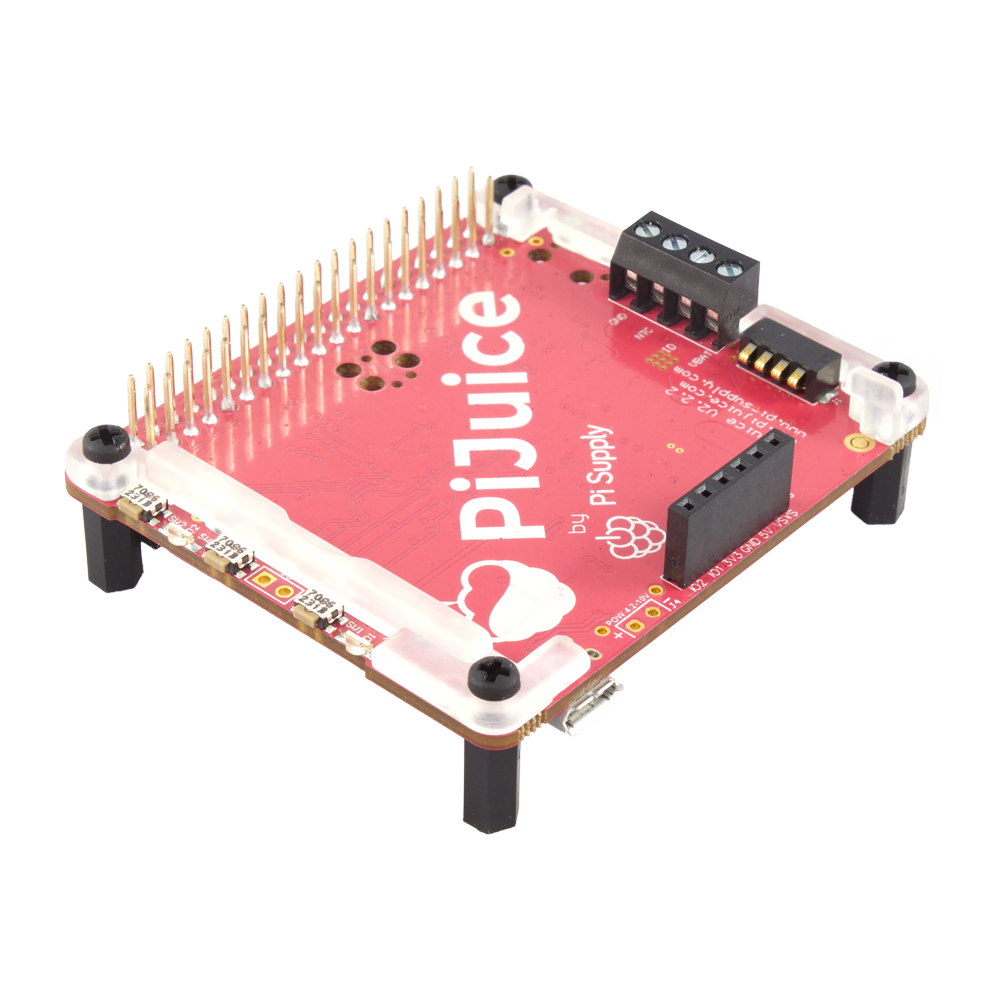

PiJuice HAT - A Portable Power Platform For Every Raspberry Pi

Product Description
As one of the smallest systems around there are so many amazing things you could do with the Raspberry Pi if it was self-powered and portable. Introducing PiJuice! A fully uninterruptible power supply that will always keep your Raspberry Pi powered. Our revolutionary PiAnywhere technology contained in every PiJuice HAT - is the best way to take your Pi off the grid! The real time clock (RTC) on board will let your Pi know what time it is even with no power input or internet connection. Alongside this is an integrated microcontroller (MCU) chip which will manage soft shut down functionality and a true low power deep sleep state and intelligent startup.

You will be able to always keep track of the charge levels and other info with the two built-in tri-coloured RGB LEDs, trigger events and scripts with the three programmable buttons and since the PiJuice will use up to just five of your GPIO pins (just power and I2C), the rest are free to diversify your project. The stacking header allows you to continue to use your existing HATs and add-ons with PiJuice.

  • Onboard 1820 mAh off the shelf Lipo / LiIon battery for ~4 to 6 hours in constant use! (with support for larger Lipo Battery of 5000 or 10,000 mAH+ to last up to 24 hrs +)
  • A Full Uninterrupted / Uninterruptible Power Supply (UPS) solution.
  • Designed for the Raspberry Pi A+, B+, 2B, 3B3B+, 4BRaspberry Pi Zero v1.3 Raspberry Pi Zero Wireless, and any other Raspberry Pi with 40 GPIO pins.
  • Integrated Real Time Clock
  • Onboard intelligent on/off switch
$68.95
Maximum quantity available reached.
  • 1 x PiJuice HAT
  • 1 x Battery and battery surround
  • 1 x PiJuice guide
  • 4 x Mounting posts attached to PiJuice
  • 8 x Mounting screws (4 are already assembled to the board)
  • 1 x Pogo pin
  • 3 x Stickers
  • The EEPROM can be disabled and its I2C address changed for increased compatibility with other boards

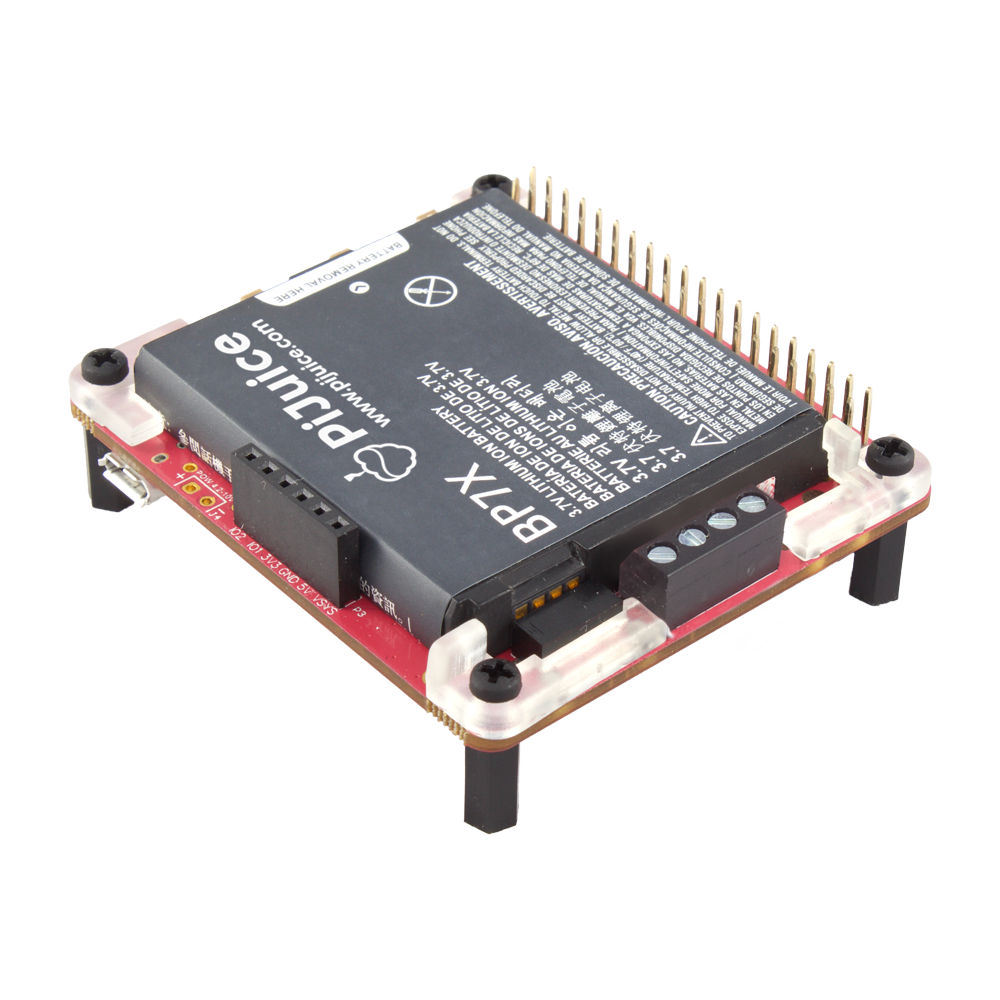

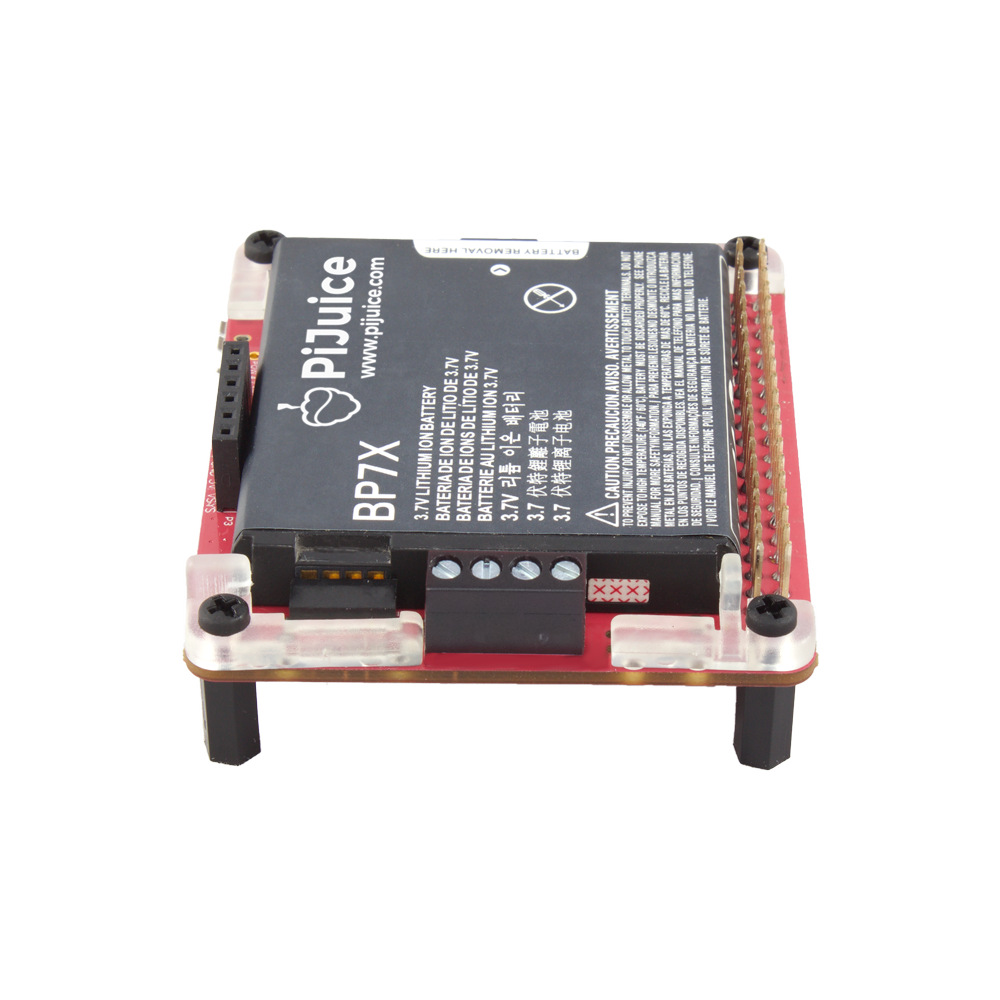

  • BP7X battery - original battery from Motorola Droid 2 (A955) - 1820mAh battery
  • Microcontroller is an ST Micro STM32F030CCT6 ARM Cortex-M0, 48MHz, F64KB, R8KB, I2C, SPI, USART, 2.4-3.6V
  • Charge IC - BQ24160RGET Charger IC Lithium-Ion/Polymer, 2.5A, 4.2-10V
  • Fuel gauge IC - LC709203FQH-01TWG Battery Fuel Gauge, 1-Cell Li-ion, 2.8%
  • EEPROM - CAT24C32WI-GT3 EEPROM, I2C, 32KBIT, 400KHZ, 1V7-5V5
  • Optional spring pin - Mil-Max 0929-7-15-20-77-14-11-0
  • Compatible with any 4 pin battery on board that can be used with 00-9155-004-742-006 battery contacts from AVX including the BP7X, BP6X, and any compatible batteries including the 1600mAh and 2300mAh ones from CameronSino (CS-MOA853SL and CS-MOA855XL)
  • There is an on board 4 pin screw terminal block for larger off board batteries. Any single cell LiPo / LiIon is compatible. However, you use your own sourced battery at your own risk. We HIGHLY RECOMMEND using a battery with an internal protection circuit and a NTC (temp sensor)
  • Optional header for offboard button - connected to same output as SW1
  • 6 pin breakout header - with two GPIO from the ARM Cortex-M0, Vsys, 5v0, 3v3, GND connections
  • Header for optional off board solar panel / wind turbine etc.
  • Optional RF Shield attachment - Harwin S02-20150300 (can also double as an inexpensive heatsink)
  • Input voltage range - 4.2V 10V
  • Output voltage - 3.3V and 5V
  • Output amperage - maximum current at 5V gpio is 2.5A and at VSYS output 2.1A, but also this depends heavily on battery capacity. For BP7X have measured around 1.1A at 5V GPIO and around 1.6A at VSYS output. Obviously, this also depends heavily on the current draw demanded by the Raspberry Pi/device itself. To achieve a maximum of 2.5A it will need battery over 3500mAh.
  • Boxed weight - 96g
  • Boxed dimensions - 12.2 x 10.8 x 3.5 cm
  • Unboxed weight - 57g
  • Unboxed dimensions - 6.5 x 5.6 x 2 cm
