Description

The newest addition to Dayton Audio's successful family of Point Source full-range drivers, the PS95-8 model features a lightweight, curved-profile paper cone made of 100% natural fibers, for dynamic and articulate sound that extends from a punchy, detailed bass to the highest treble. The compact 3-1/2" size enables great sonic performance in small satellite speakers on the desktop, or in narrow "needle"-style tower cabinets for filling a larger room.

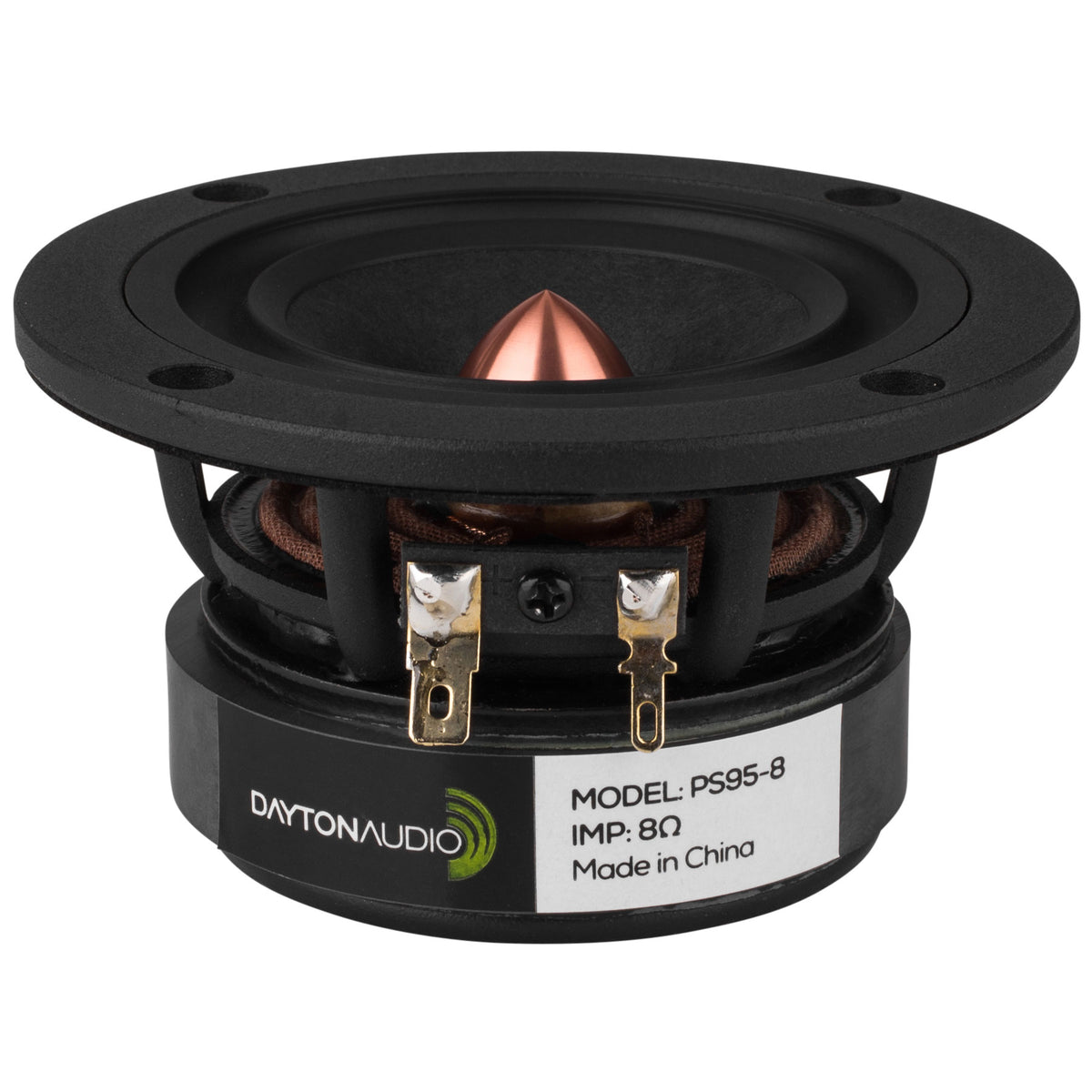

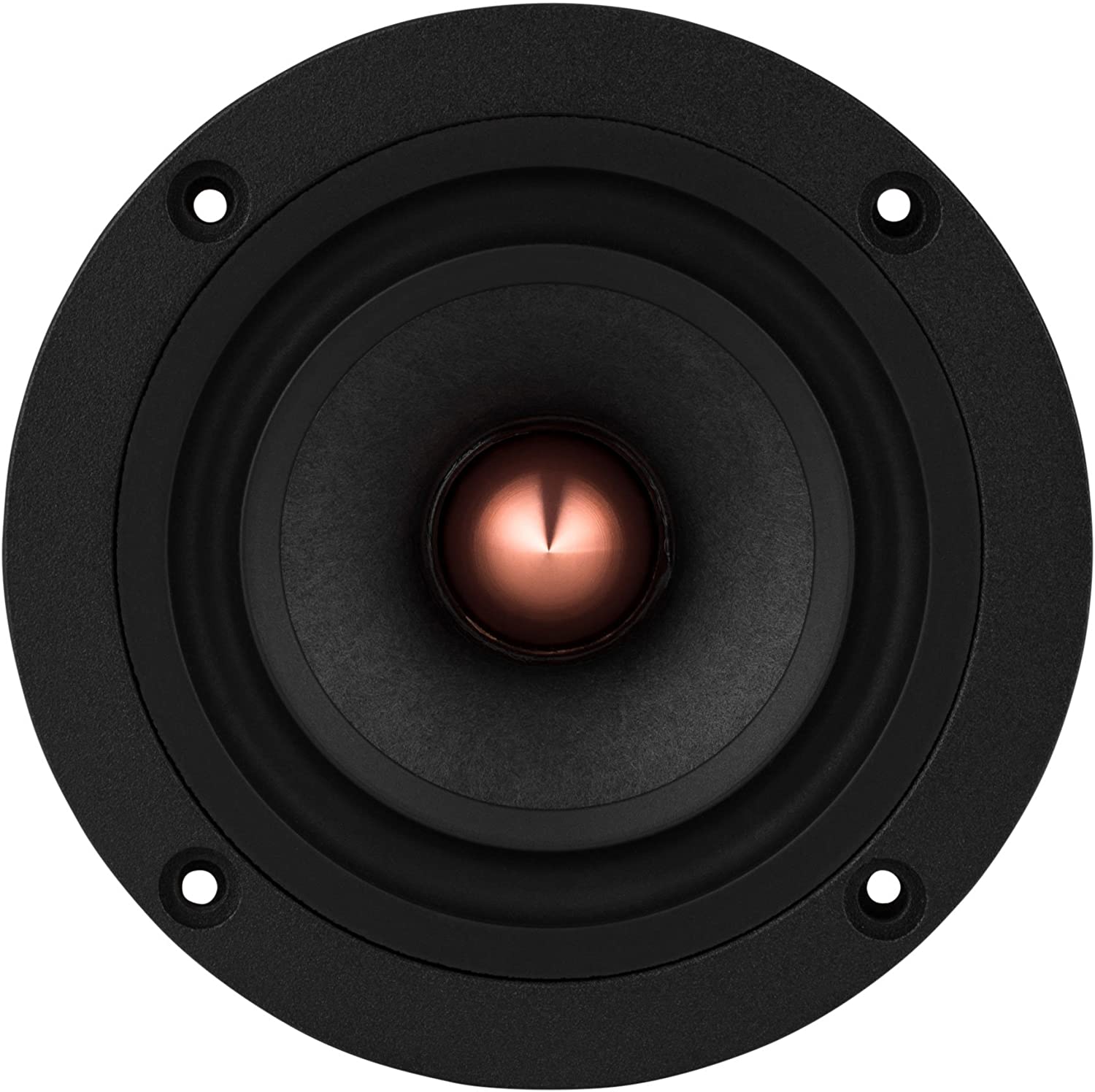

The copper-anodized aluminum phase plug of the PS95-8 is more than just beautiful – it provides enhanced dispersion and eliminates the resonance from a conventional dust cap. And the optimized, high-strength ferrite magnet structure features a copper pole cap that reduces resolution-sapping inductance and lowers distortion. Our smallest Point Source series full-range driver isn't small on engineering, or performance!

Highlights

  • Copper pole cap in motor assembly reduces inductance and distortion
  • Detailed, natural sounding full-range audio performance without distortion
  • Classy copper-anodized phase plug spreads dispersion and avoids resonance
  • Low-mass voice coil and paper cone produce detailed, non-fatiguing sound
  • Non-resonant cast frame enhances clarity and dynamics

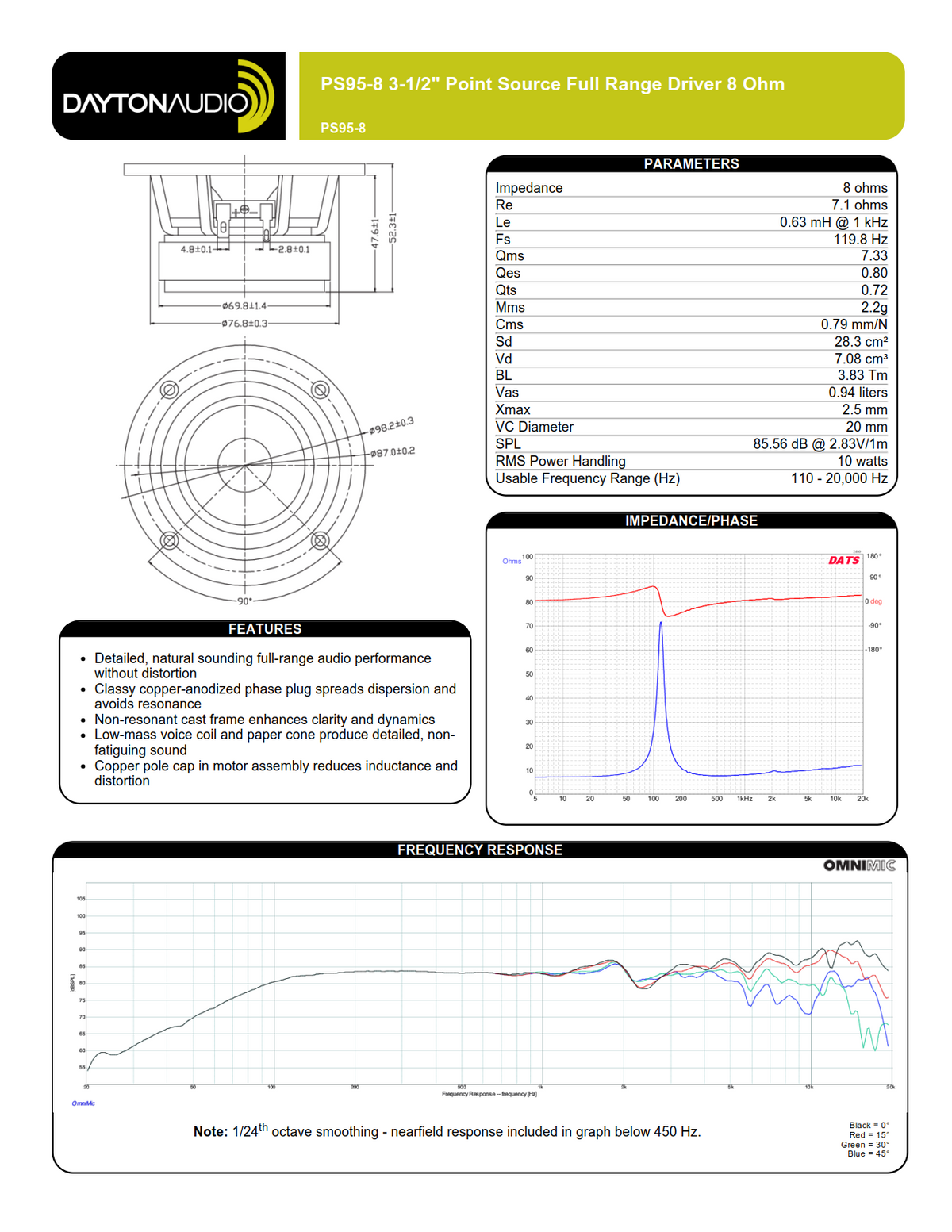

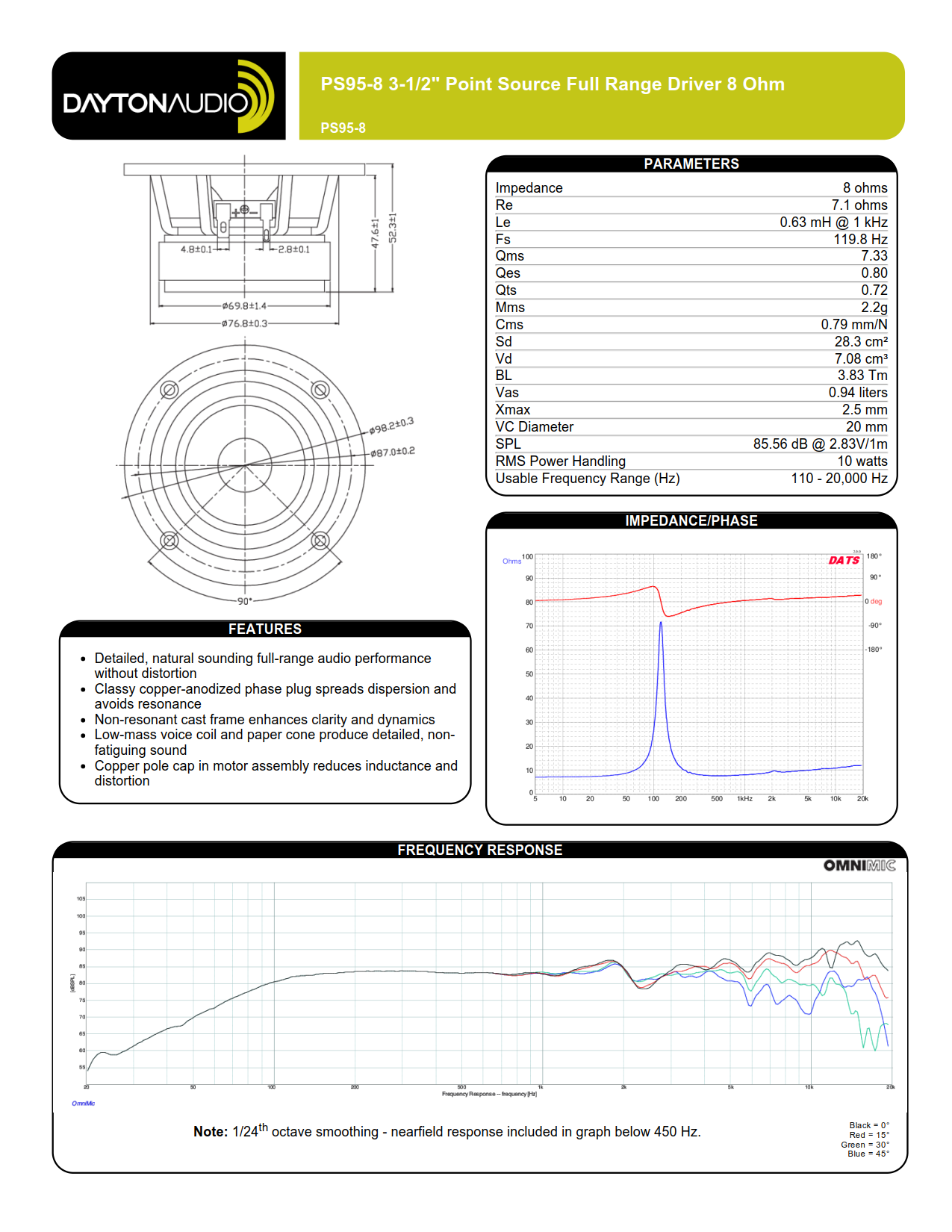

Product Specifications

Nominal Diameter: 3-1/2"

Power Handling (RMS): 10 Watts

Power Handling (max): 20 Watts

Impedance: 8 ohms

Frequency Response: 110 to 20,000 Hz

Sensitivity: 85.56 dB 2.83V/1m

Voice Coil Diameter: 0.79"


Thiele-Small Parameters

Resonant Frequency (Fs): 119.8 Hz

DC Resistance (Re): 7.1 ohms

Voice Coil Inductance (Le): 0.63 mH

Mechanical Q (Qms): 7.33

Electromagnetic Q (Qes): 0.80

Total Q (Qts): 0.72

Compliance Equivalent Volume (Vas): 0.03 ft.³

Mechanical Compliance of Suspension (Cms): 0.79 mm/N

BL Product (BL): 3.83 Tm

Diaphragm Mass Inc. Airload (Mms): 2.2g

Maximum Linear Excursion (Xmax): 2.5 mm

Surface Area of Cone (Sd): 28.3 cm²


Materials of Construction

Cone Material: Paper

Surround Material: Rubber

Voice Coil Wire Material: Copper

Voice Coil Former: Kapton® / Polyimide

Basket / Frame Material: Cast Aluminum

Magnet Material: Ferrite


Mounting Information

Overall Outside Diameter: 3.87"

Baffle Cutout Diameter: 3.05"

Depth: 2.1"

Bolt Circle Diameter: 3.4"

# Mounting Holes: 4


Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume: 0.1 ft.³

Sealed F3: 122 Hz

Vented Volume: 0.11 ft.³

Vented F3: 68 Hz


Dayton Audio PS95-8 3-1/2" Point Source Full Range Driver 8 Ohm

Brand: Dayton Audio

Model: PS95-8

Part Number: 295-349

UPC: 848791001673

Product Category: Midrange / Midbass Drivers & Full-Range Speakers

Unit of Measure: EA

Weight: 1.4000 lbs
