CAPUF ESP32 Programmer

Product Description

ESP Prog is ESP32 Programmer board.

It can be used in multiple ways like use it for programming ESP8266, ESP32, or any other microcontroller which needs boot Pin and Reset Pin control along with UART RX, and TX for flashing the MCU with a new program.

Or, one can also use it as a USB to UART adapter.

FEATURES

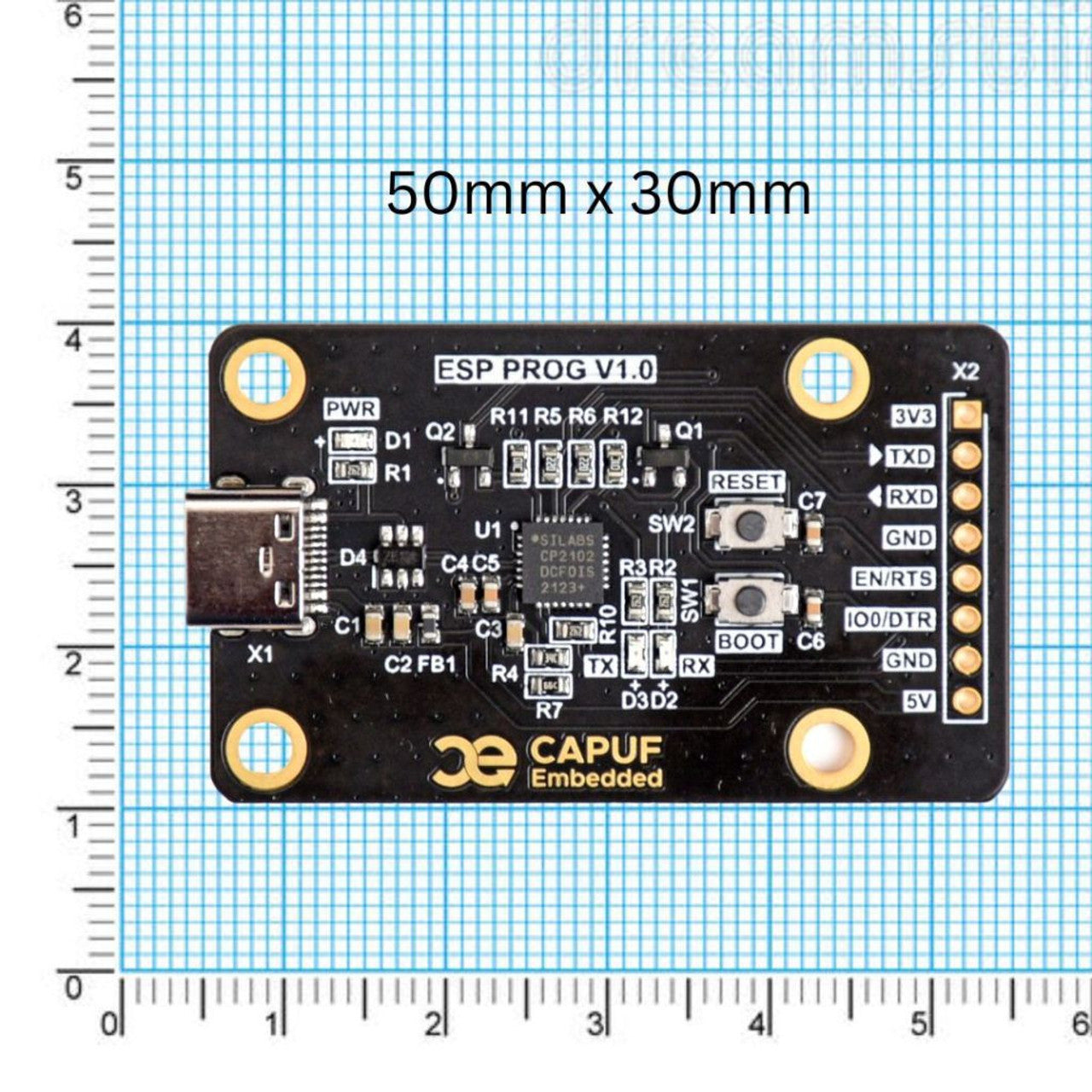

  • Compact size: 50mmx30mm
  • USB-C Type Interface: you can connect a USB in any direction. Use USB-A to USB-C Cable.
  • LEDs for Power, RX, TX
  • Switch for Reset and Boot
  • Both 3.3V and 5V are available on the O/P connector
  • All signals on a standard 2.54mm Pitch Header (Header will come along with the board (unsoldered))


SKU: K805
$7.95
Maximum quantity available reached.

ESP PROG PINOUT

  1. 3.3V DC (100mA Max.)
  2. TXD
  3. RXD
  4. GND
  5. Reset/RTS
  6. Boot/DTR
  7. GND
  8. 5V DC (500mA Max.)

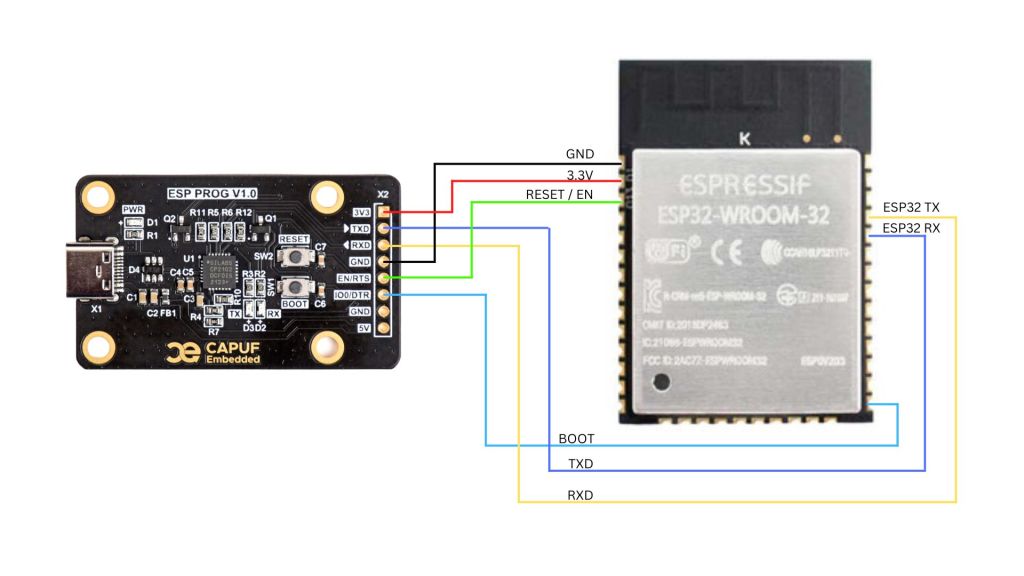

ESP PROG CONNECTIONS
