Adafruit SMT Breakout PCB for SOIC-16 or TSSOP-16 - 3 Pack!

Product Description

Beguiled by a fancy new chip that is only available in a SOIC or (T)SSOP pinout? This breakout PCB set will make your life much much easier and get you prototyping faster than ever. One side has a 16-TSSOP pin out with traces going to two rows of 0.1" spaced holes, the other has 16-SOIC. Solder your chip to either side and you're ready to rock on any solderless breadboard.

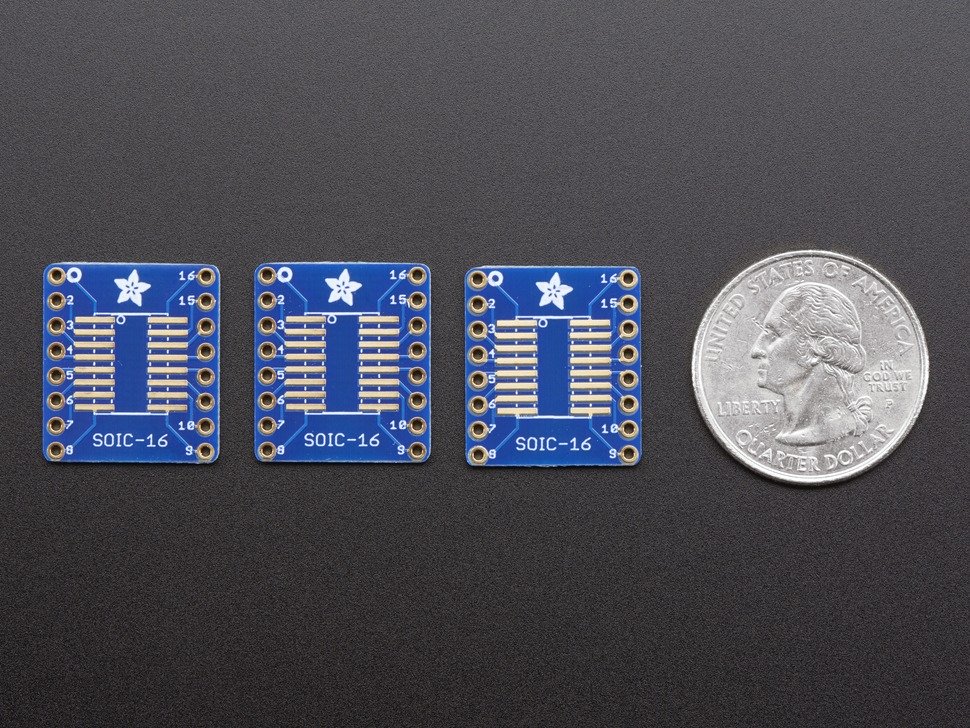

Each item comes with three PCBs, each PCB is identical and can support either a SOIC (narrow, medium or wide variety) or TSSOP. Standard thickness PCBs, with 0.6" spacing between the two rows. You can of course use a smaller chip but the pin numbering wont be right so use care.

SKU: K543
Avaliability: This item will ship within 5-10+ business days. This item is popular and we are awaiting more inventory. Please Contact Us for an estimate on avalaiblity.
$3.90 $3.95
