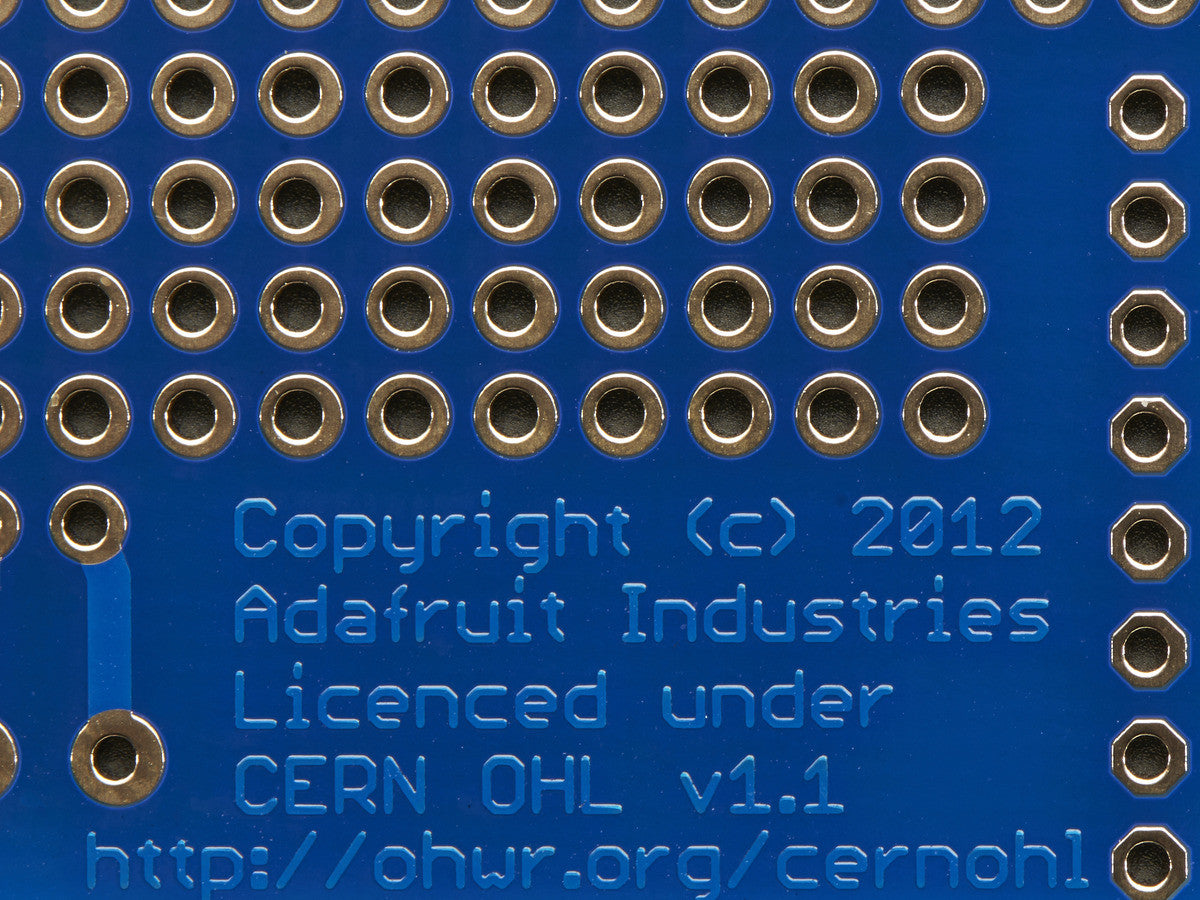

Adafruit Prototyping Pi Plate Kit for Raspberry Pi

Product Description

This is the add on prototyping Pi Plate from Adafruit, which can snap onto the Pi PCB (and is removable later if you wish) and gives you all sorts of prototyping goodness to make building on top of the Pi easy.

Note: This kit is best used for the Raspberry Pi Model A or Model B.

The basic essentials are all here. There's a big prototyping area, half of which is 'breadboard' style and half of which is 'perfboard' style so you can wire up DIP chips, sensors, and the like. Along the edges of the proto area, all the GPIO/I2C/SPI and power pins are broken out to 0.1" stips so you can easily connect to them. On the edges of the prototyping area, (almost all of) the breakout pins are also connected to labeled 3.5mm screw-terminal blocks. This makes it easy to semi-permanently wire in sensors, LEDs, etc. There's also a 4-block terminal block broken out to 0.1" pads for general non-GPIO wiring. Finally, we had a little space remaining over the metal connectors so we put in an SOIC surface mount chip breakout area, for those chips that dont come in DIP format.

$15.90 $15.95
Maximum quantity available reached.
  • PCB
  • 2x13 female header
  • 1x6 female header
  • Two 1x8 female headers
  • Bumper
  • Three 3-pin terminal blocks
  • Ten 2-pin terminal blocks
