Adafruit Proto Shield for Arduino Kit - Stackable Version R3

Save $0.05
AdafruitSKU: K162
No reviews

Price:
Sale price $9.90 Regular price$9.95
Automatic 10% Discount Available
Create an account and Sign Up for our Newsletter to get Adafruit Member Pricing and Save 10% on Adafruit Products like this!
Stock:
In stock (38 units), ready to be shipped
Buy On Amazon

Description

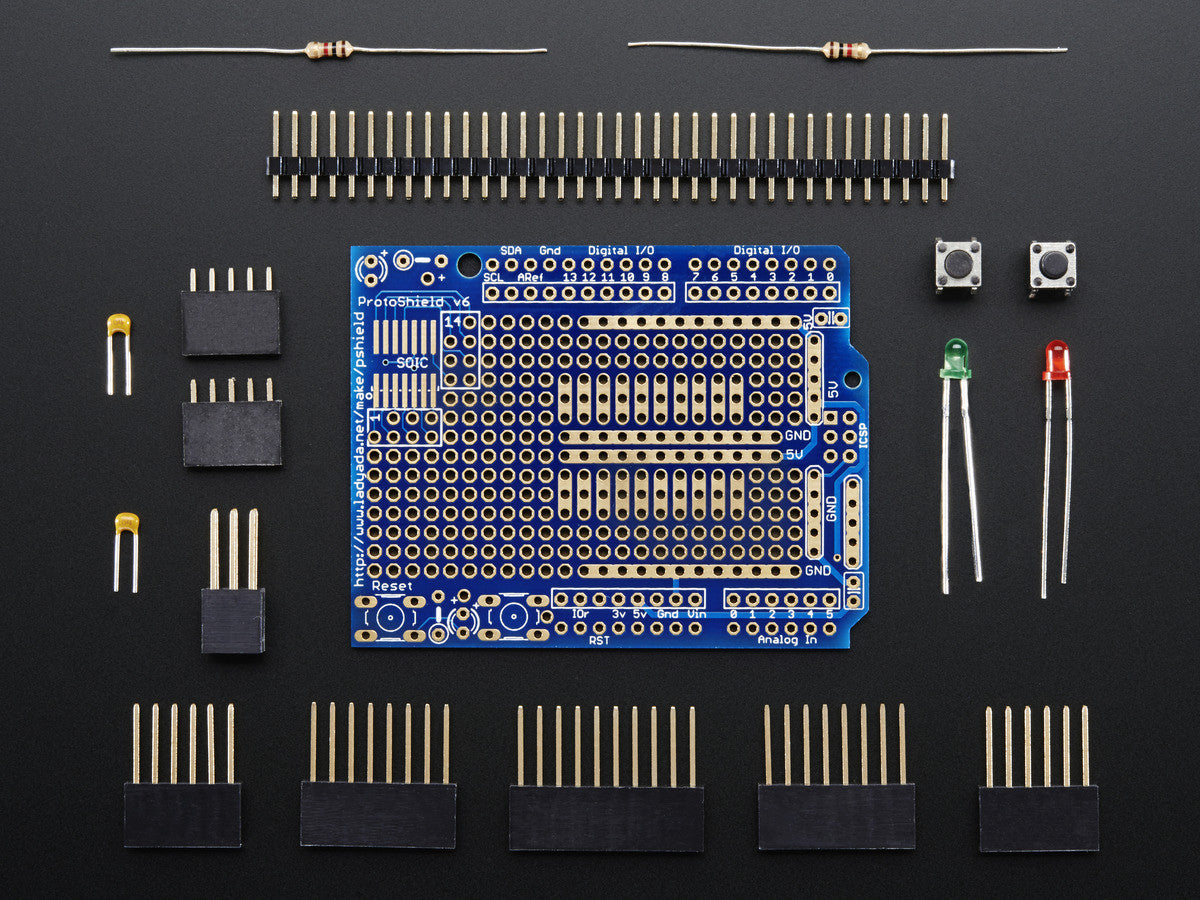

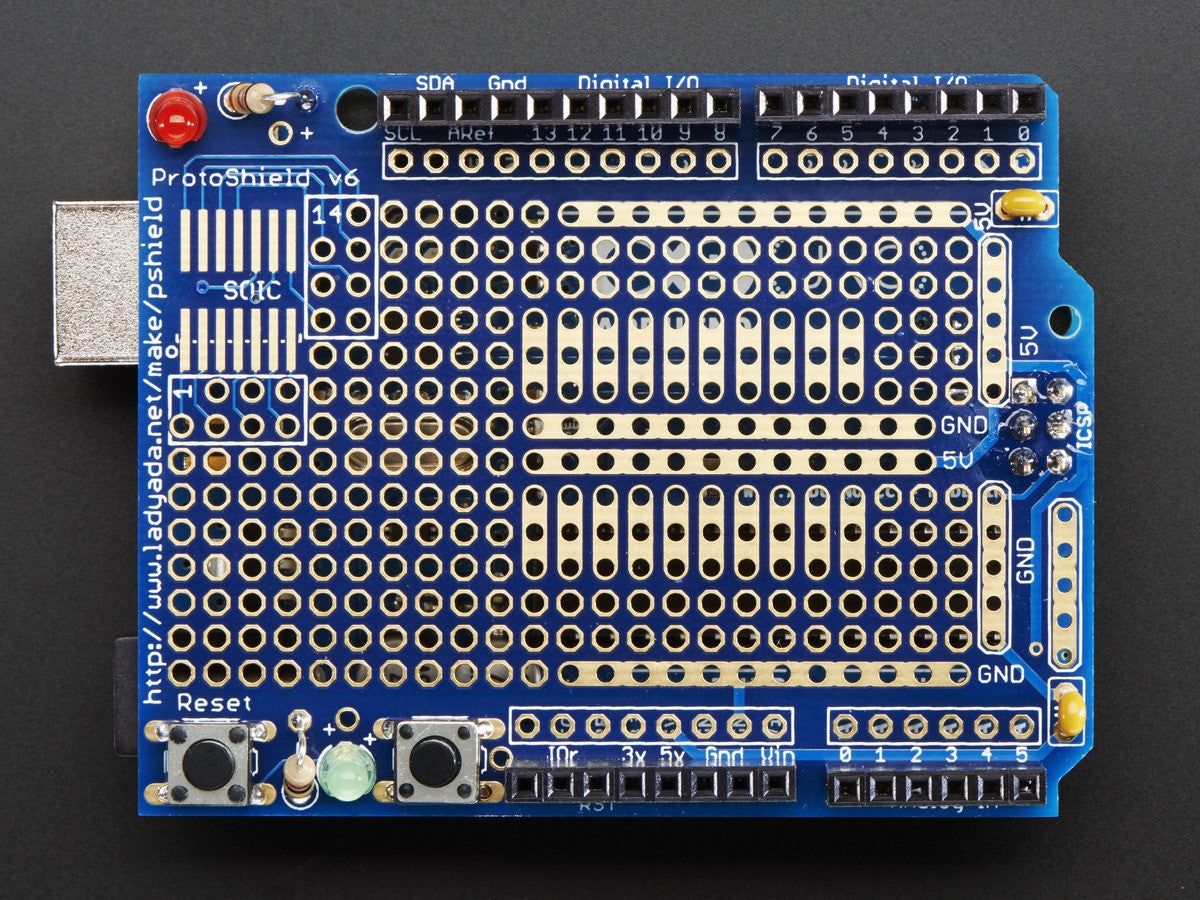

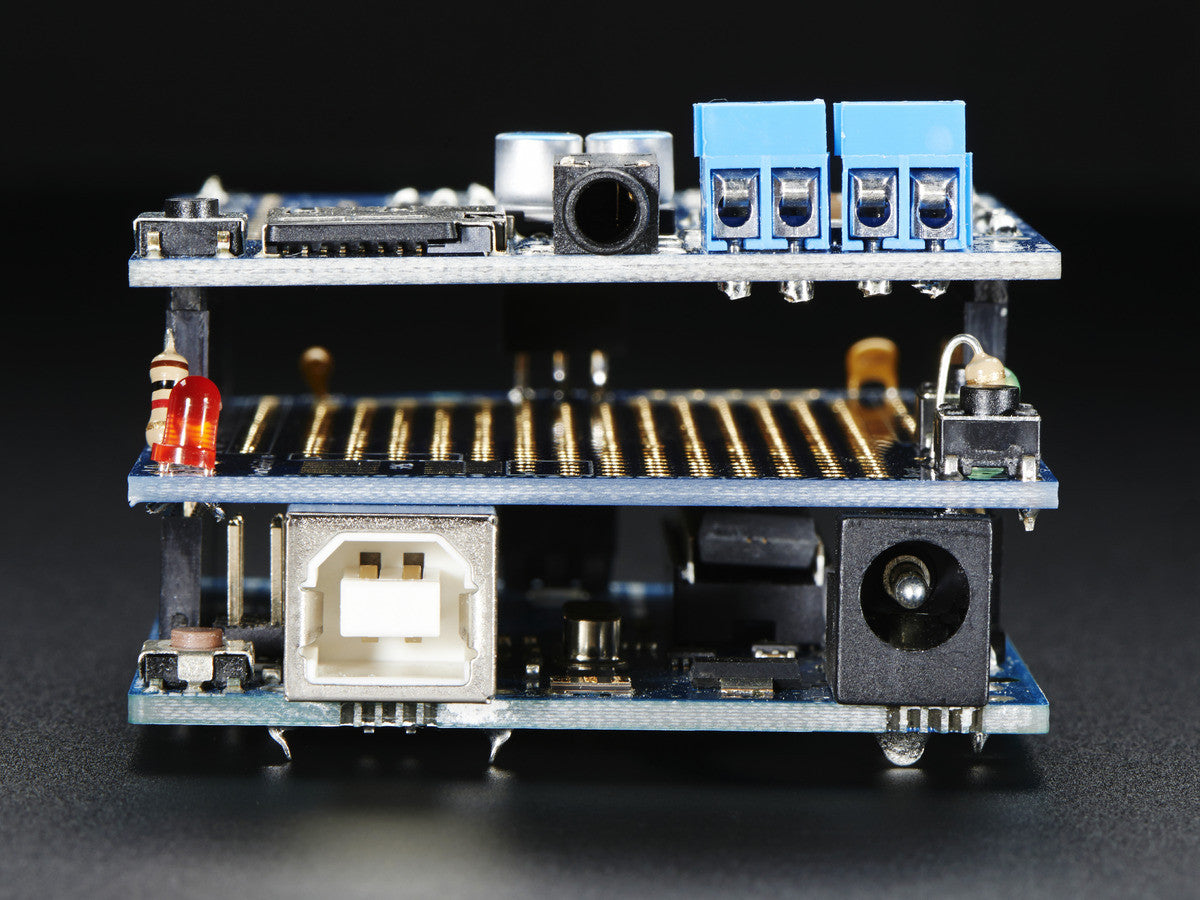

This is one of the best prototyping shields out there, and now is even better with Version R3 - updated for the most compatibility with just about all the Arduinos. It works with UNO, Mega, Leonardo, NG, Diecimila, Duemilanove, and compatible Arduinos. Yun's and Arduino Ethernets have a chunky Ethernet jack that gets in the way of stacking, you can use the stacking headers included and it will work, just doesn't sit nice and flat like with the others.

  • Standard 0.1"x0.1" prototying grid with big pads
  • Stacking headers and plain heade
  • A IC pattern for adding DIP ICs up to 20 pins
  • Power rails down the middle and sides
  • A reset button and an extra general use button
  • 2 3mm general use LEDs, red and green, as well as 2 matching resistors
  • A pass-thru ICSP stacking header
  • A surface-mount chip area for up to 14 SOIC size parts
  • Compatible with tiny breadboards
  • Every pin is brought out
  • Gold plated pads
  • 2 x 0.1uF capacitors on either side for extra power stability
  • Fits regular Arduino headers
  • Dimensions (assembled): 69mm x 53mm x 13mm (2.7in x 2.1in x 0.5in)
