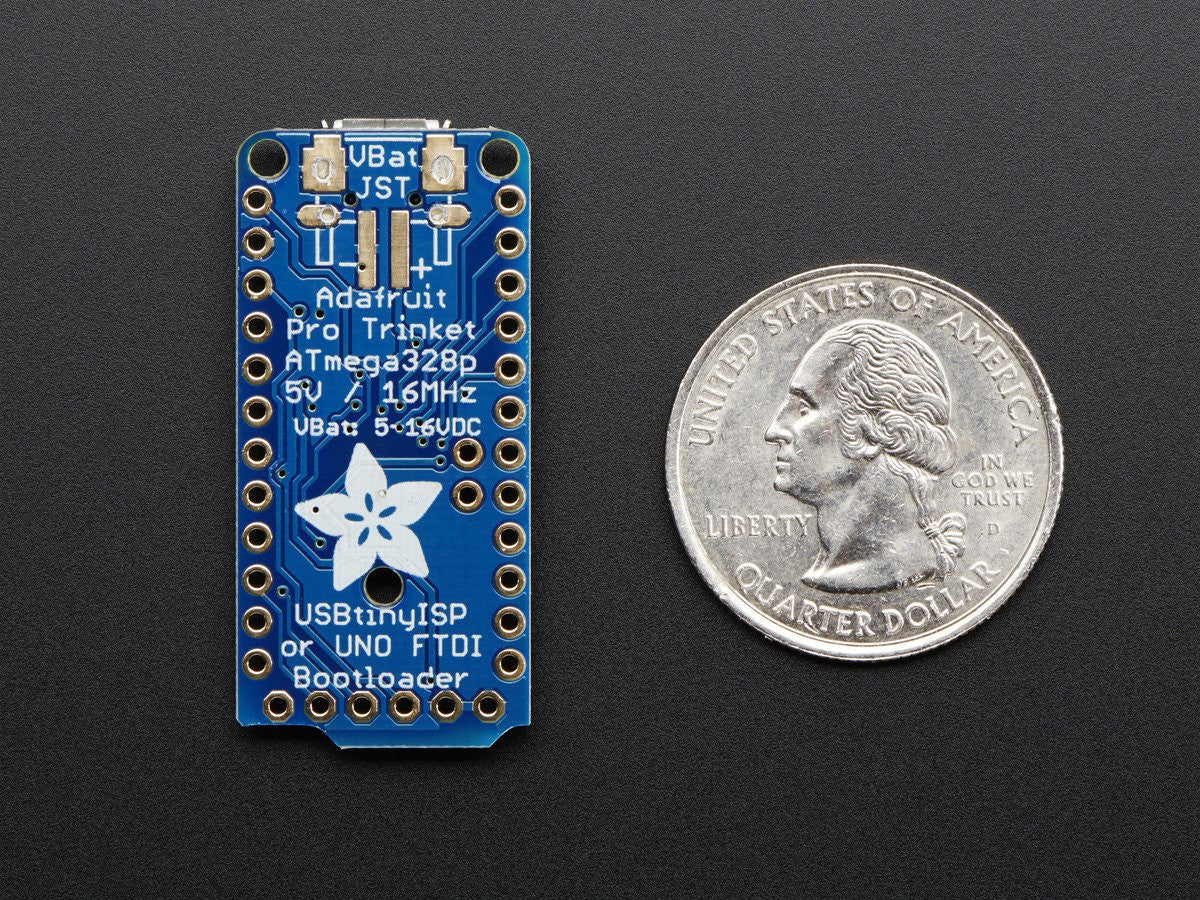

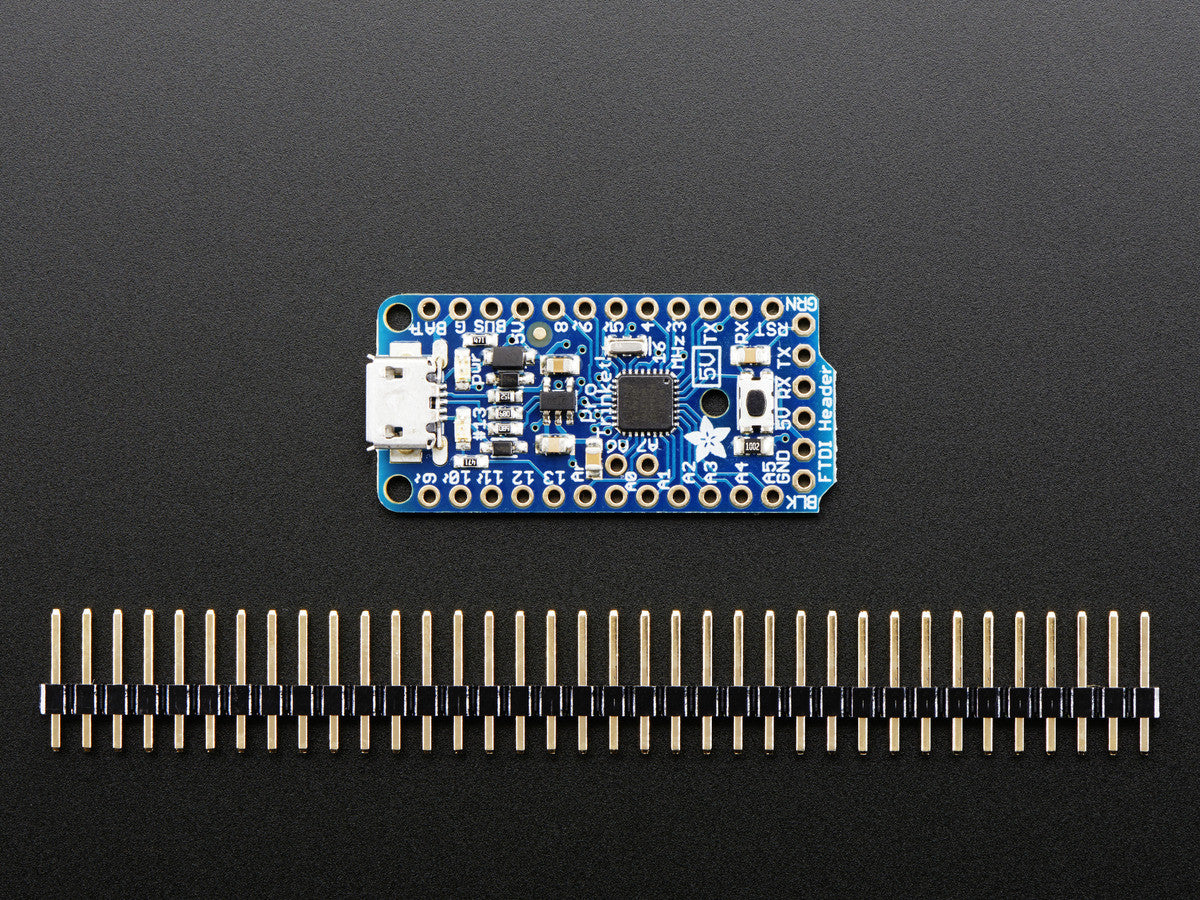

Adafruit Pro Trinket - 5V 16MHz

Product Description

Pro Trinket combines everything you love about Trinket with the familiarity of the common core Arduino chip, the ATmega328. It's like an Arduino Pro Mini with more pins and a USB as well. The Pro Trinket has been designed with 18 GPIO, 2 extra analog inputs, 28K of flash, and 2K of RAM.

Like the original Trinket, it has onboard USB bootloading support using a MicroUSB. As well, an Optiboot support has been added, so you can either program your Pro Trinket over USB or with a FTDI cable.

The Pro Trinket 5V uses the Atmega328P chip, which is the same core chip in the Arduino UNO/Duemilanove/Mini/etc. What this means is that not only is Pro Trinket programmable using the Arduino IDE as you already set up, but 99% of Arduino projects will work out of the box!

$9.90 $9.95
Maximum quantity available reached.
  • ATmega328P onboad chip in QFN package
  • 16MHz clock rate, 28K FLASH available
  • USB bootloader with a nice LED indicator looks just like a USBtinyISP so you can program it with AVRdude and/or the Arduino IDE (with a few simple config modifications).
  • Also has headers for an FTDI port for reprogramming

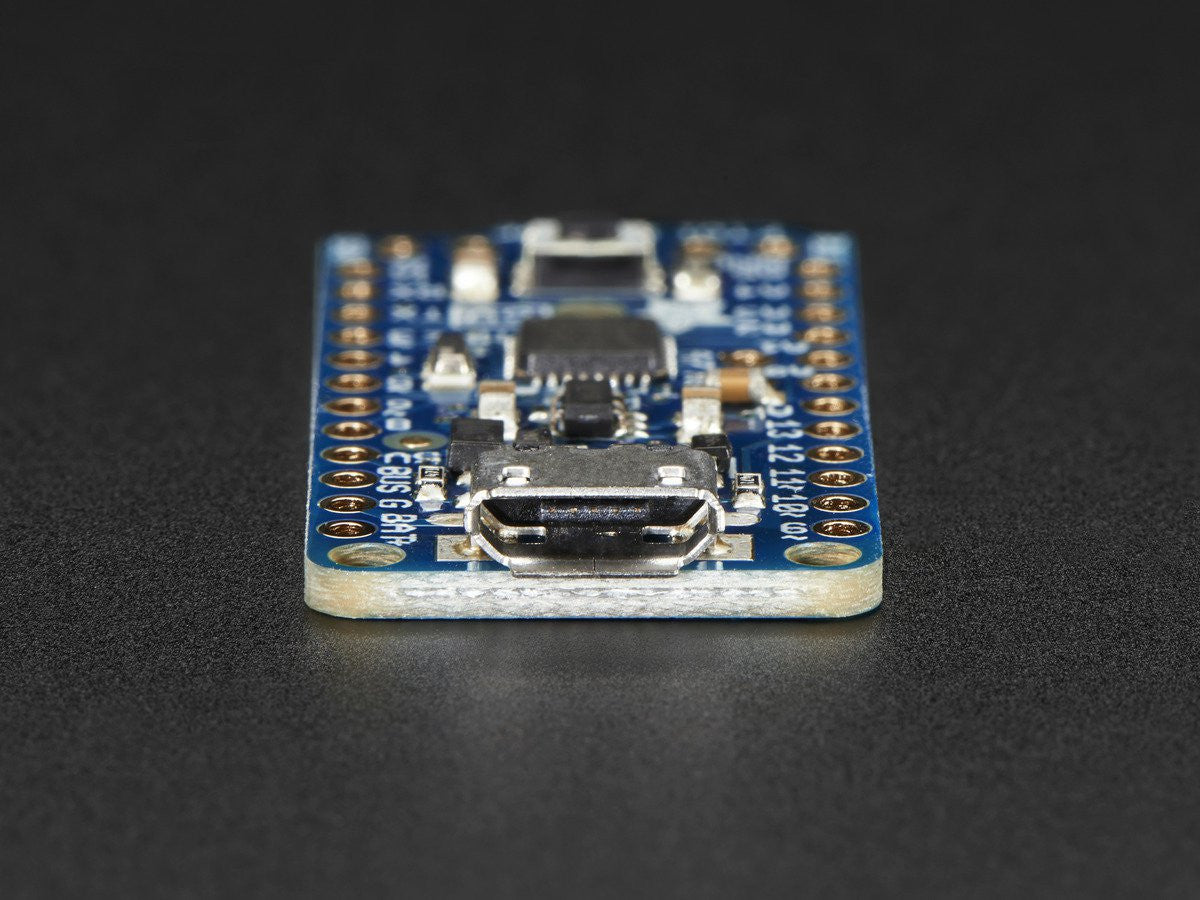

  • Micro-USB jack for power and/or USB uploading, you can put it in a box or tape it up and use any USB cable for when you want to reprogram.
  • On-board 5.0V power regulator with 150mA output capability and ultra-low dropout. Up to 16V input, reverse-polarity protection, thermal and current-limit protection.
  • Power with either USB or external output (such as a battery) - it'll automatically switch over
  • On-board green power LED and red pin #13 LED
  • Reset button for entering the bootloader or restarting the program.
  • Works with 99% of existing Arduino sketches (anything that doesn't use more than 28K, and doesn't require pins #2 and #7)
  • Mounting holes
  • 38mm x 18mm x 2mm / 1.5" x 0.7" x 0.08"
  • Height with MicroUSB: 4mm / 0.16"
  • Weight: 2.6g
