{"id":9121597704,"title":"Adafruit Powerboost 500 LiPo Charger","handle":"adafruit-powerboost-500-charger-500ma","description":"\u003cp\u003ePowerBoost 500C is the perfect power supply for your portable project. With a built-in battery charger circuit, you'll be able to keep your project running even while recharging the battery! This little DC\/DC boost converter module can be powered by any 3.7V LiIon\/LiPoly battery, and convert the battery output to 5.2V DC for running your 5V projects.\u003c\/p\u003e \u003cp\u003eTo make this even more useful, Adafruit added a MicroLipo charger on the other side. The charger circuitry is powered from a microUSB jack, and will recharge any 3.7V\/4.2V LiIon or LiPoly battery at 500mA max rate. There's two LEDs for monitoring the charge rate, a yellow one tells you its working, a green one lights up when its done. You can charge and boost at the same time no problem, without any interruption on the output so its fine for use as a \"UPS\" (un-interruptable power supply) for a low-current draw device. Just be aware that the charge rate is 500mA max, so if you're drawing more than ~300mA continuously from the 5V output side, the battery will slowly drain since the charge rate is less than the dis-charge rate.\u003cbr\u003e\u003cbr\u003eEach order comes with a fully assembled and tested PowerBoost 500C + USB jack. Does not come with a Lipoly or LiIon battery, \u003ca href=\"https:\/\/kjdelectronics.com\/collections\/adafruit\/products\/lithium-ion-battery-3-7v-2000mah?variant=29778536904\" target=\"_blank\"\u003ebut we do carry one in the shop perfect for your battery needs\u003c\/a\u003e. Also doesn't come with the nice iPhone or charger cable. \u003cbr\u003e\u003cbr\u003eIf you're trying to figure out how much current your project is using, check out the \u003ca href=\"https:\/\/kjdelectronics.com\/products\/adafruit-usb-charger-doctor-in-line-voltage-and-current-meter\" target=\"_blank\"\u003eCharge Doctor\u003c\/a\u003e. \u003c\/p\u003e","published_at":"2017-04-06T17:01:00-04:00","created_at":"2017-04-03T16:02:17-04:00","vendor":"Adafruit","type":"Adafruit","tags":["Charger","USB"],"price":1490,"price_min":1490,"price_max":1490,"available":false,"price_varies":false,"compare_at_price":1495,"compare_at_price_min":1495,"compare_at_price_max":1495,"compare_at_price_varies":false,"variants":[{"id":33472652424,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"K200","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Adafruit Powerboost 500 LiPo Charger","public_title":null,"options":["Default Title"],"price":1490,"weight":0,"compare_at_price":1495,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-00.jpg?v=1491249738","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-01.jpg?v=1491249741","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-02.jpg?v=1491249742","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-04.jpg?v=1491249744","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-03.jpg?v=1491249745"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-00.jpg?v=1491249738","options":["Title"],"media":[{"alt":null,"id":366393917475,"position":1,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-00.jpg?v=1491249738"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-00.jpg?v=1491249738","width":1200},{"alt":null,"id":366394081315,"position":2,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-01.jpg?v=1491249741"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-01.jpg?v=1491249741","width":1200},{"alt":null,"id":366394114083,"position":3,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-02.jpg?v=1491249742"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-02.jpg?v=1491249742","width":1200},{"alt":null,"id":366394146851,"position":4,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-04.jpg?v=1491249744"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-04.jpg?v=1491249744","width":1200},{"alt":null,"id":366394179619,"position":5,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-03.jpg?v=1491249745"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/1944-03.jpg?v=1491249745","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003ePowerBoost 500C is the perfect power supply for your portable project. With a built-in battery charger circuit, you'll be able to keep your project running even while recharging the battery! This little DC\/DC boost converter module can be powered by any 3.7V LiIon\/LiPoly battery, and convert the battery output to 5.2V DC for running your 5V projects.\u003c\/p\u003e \u003cp\u003eTo make this even more useful, Adafruit added a MicroLipo charger on the other side. The charger circuitry is powered from a microUSB jack, and will recharge any 3.7V\/4.2V LiIon or LiPoly battery at 500mA max rate. There's two LEDs for monitoring the charge rate, a yellow one tells you its working, a green one lights up when its done. You can charge and boost at the same time no problem, without any interruption on the output so its fine for use as a \"UPS\" (un-interruptable power supply) for a low-current draw device. Just be aware that the charge rate is 500mA max, so if you're drawing more than ~300mA continuously from the 5V output side, the battery will slowly drain since the charge rate is less than the dis-charge rate.\u003cbr\u003e\u003cbr\u003eEach order comes with a fully assembled and tested PowerBoost 500C + USB jack. Does not come with a Lipoly or LiIon battery, \u003ca href=\"https:\/\/kjdelectronics.com\/collections\/adafruit\/products\/lithium-ion-battery-3-7v-2000mah?variant=29778536904\" target=\"_blank\"\u003ebut we do carry one in the shop perfect for your battery needs\u003c\/a\u003e. Also doesn't come with the nice iPhone or charger cable. \u003cbr\u003e\u003cbr\u003eIf you're trying to figure out how much current your project is using, check out the \u003ca href=\"https:\/\/kjdelectronics.com\/products\/adafruit-usb-charger-doctor-in-line-voltage-and-current-meter\" target=\"_blank\"\u003eCharge Doctor\u003c\/a\u003e. \u003c\/p\u003e"}

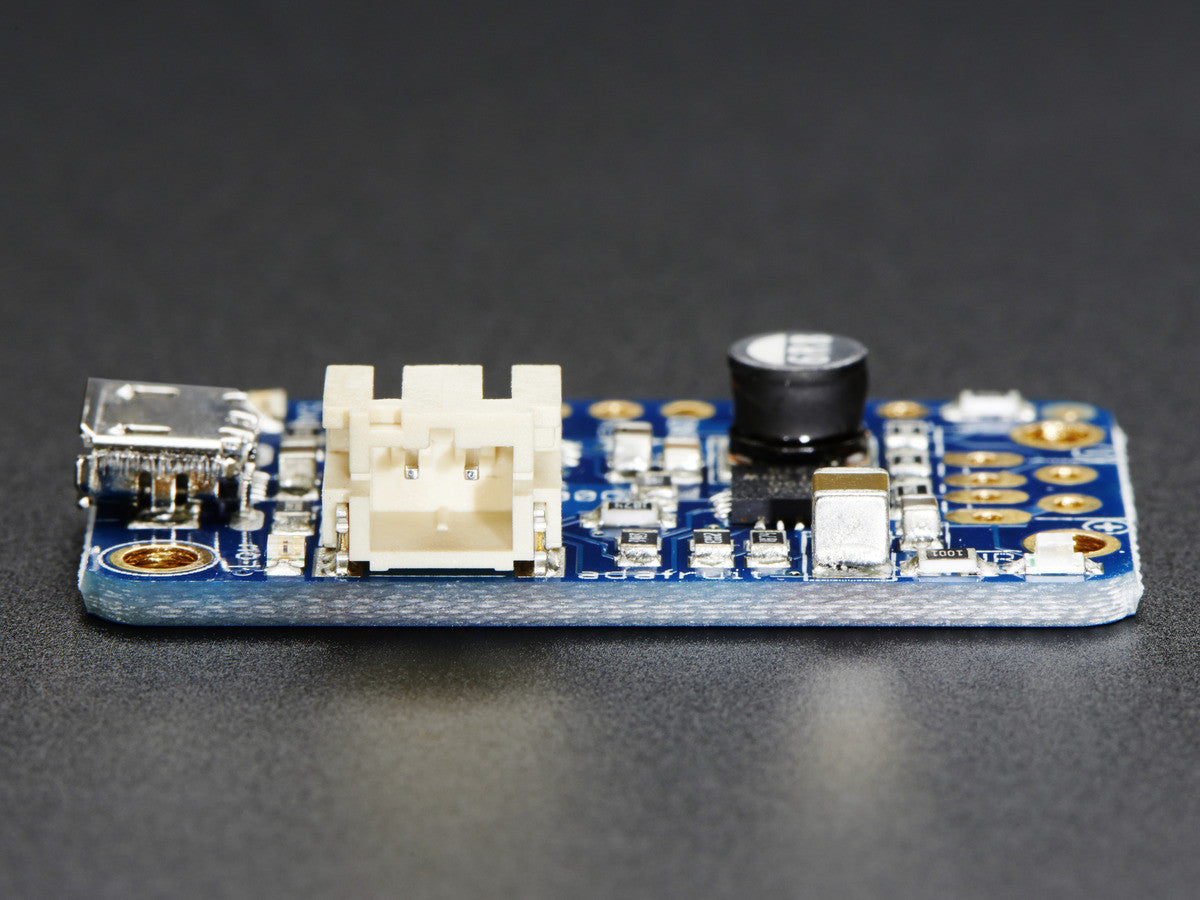

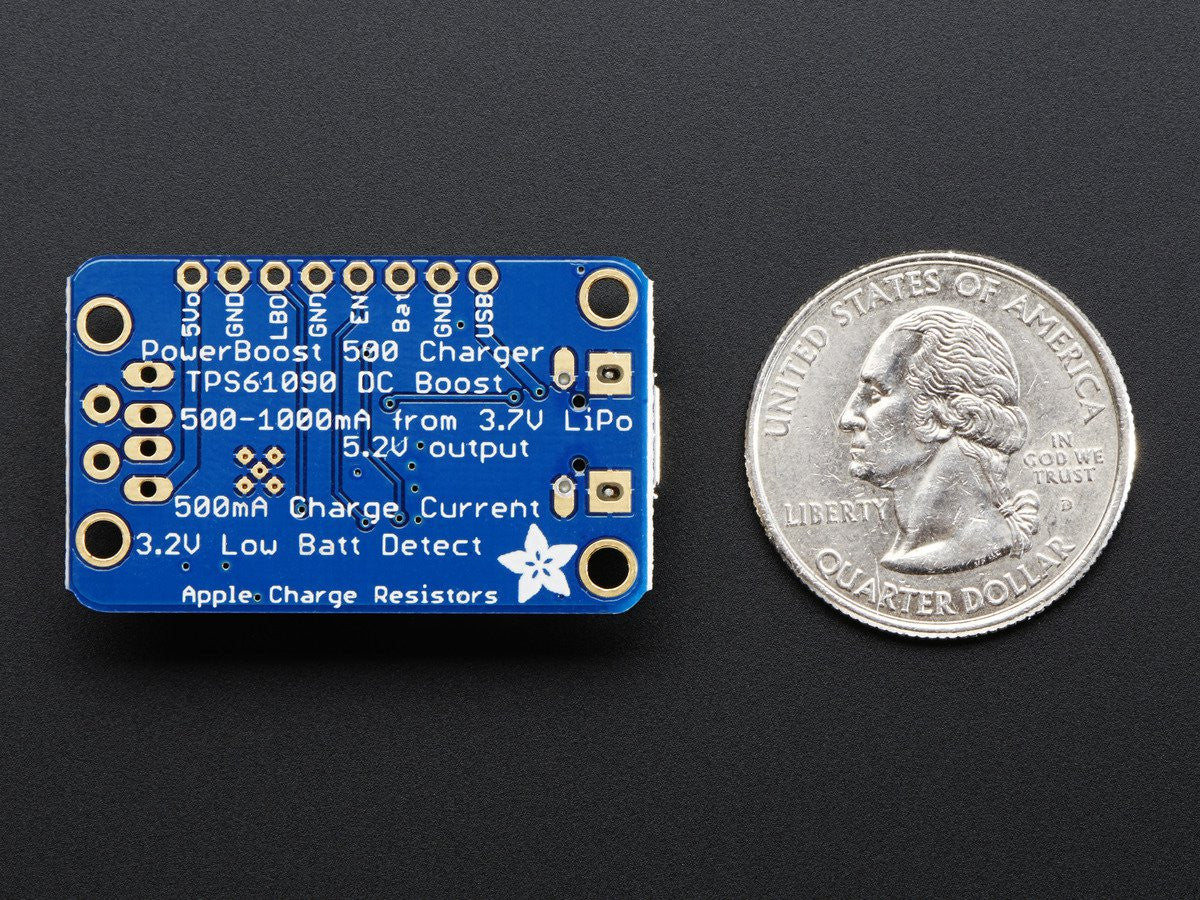

Adafruit Powerboost 500 LiPo Charger
- Synchronous operation means you can disconnect the output completely
- 2A internal switch (~2.5A peak limiting) means you can get 500mA+ from a 3.7V LiPoly/LiIon battery.
- Low battery indicator LED lights up red when the voltage dips below 3.2V

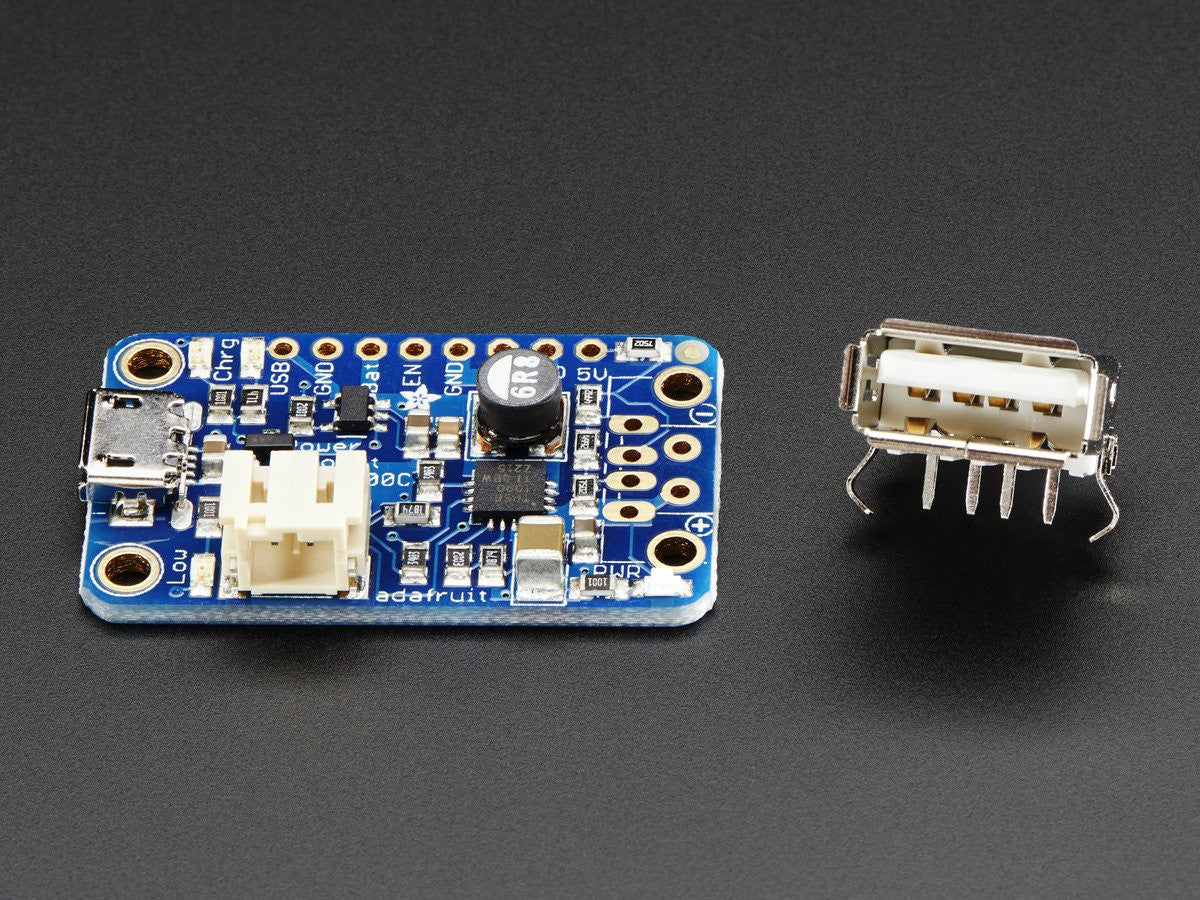

- Onboard 500mA charge-rate 'iOS' data resistors. Solder in the USB connector and you can plug in any iPhone or iPod for 500mA charge rate. Not suggested for large iPads.
- Full breakout for battery in, control pins and power out
- 90%+ operating efficiency in most cases (see datasheet for efficiency graphs), and low quiescent current: 5mA when enabled and power LED is on, 20uA when disabled (power and low batt LED are off)
- Dimensions: 22mm x 37mm x 2mm / 0.9" x 1.5" x 0.08"
- Height w/ JST: 7mm / 0.3"
- Weight: 4g
