Adafruit PCB Ruler - 6"

Product Description

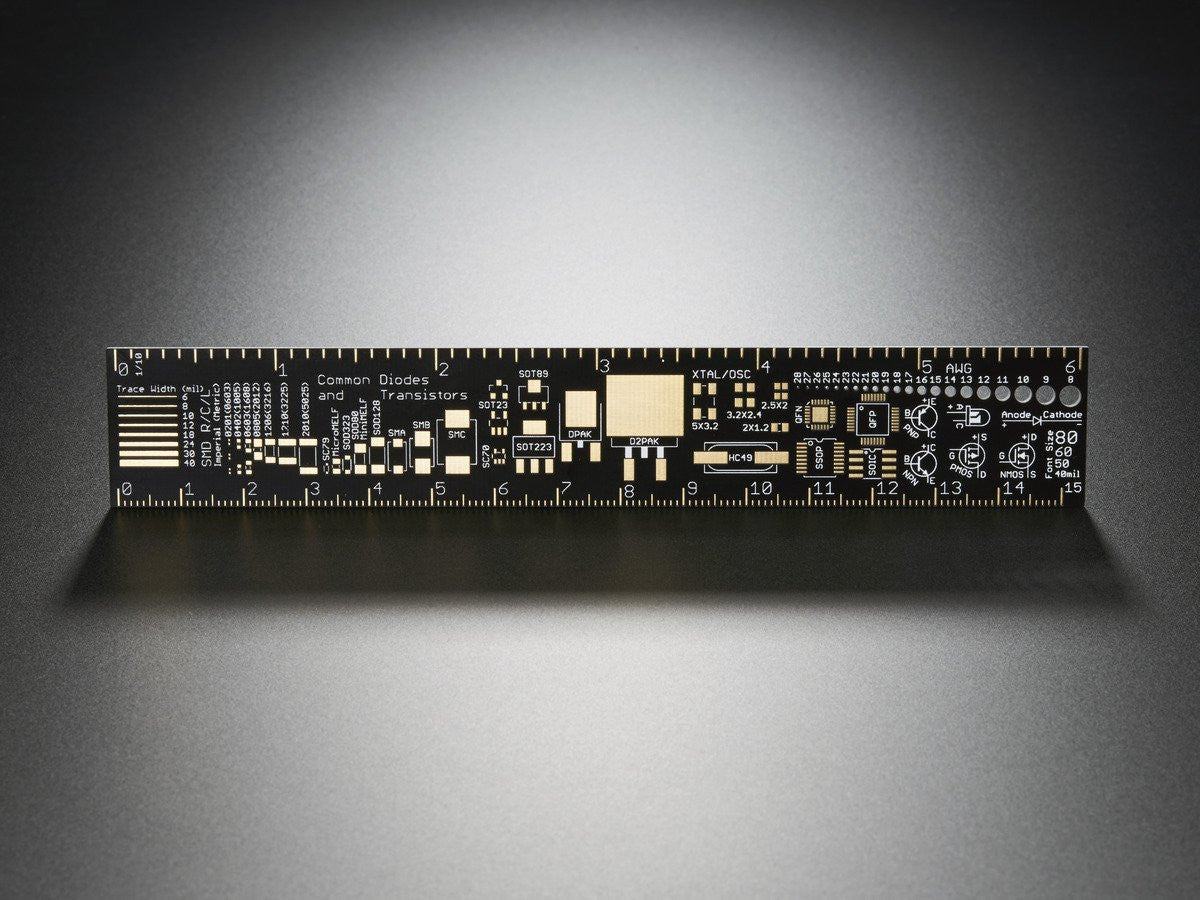

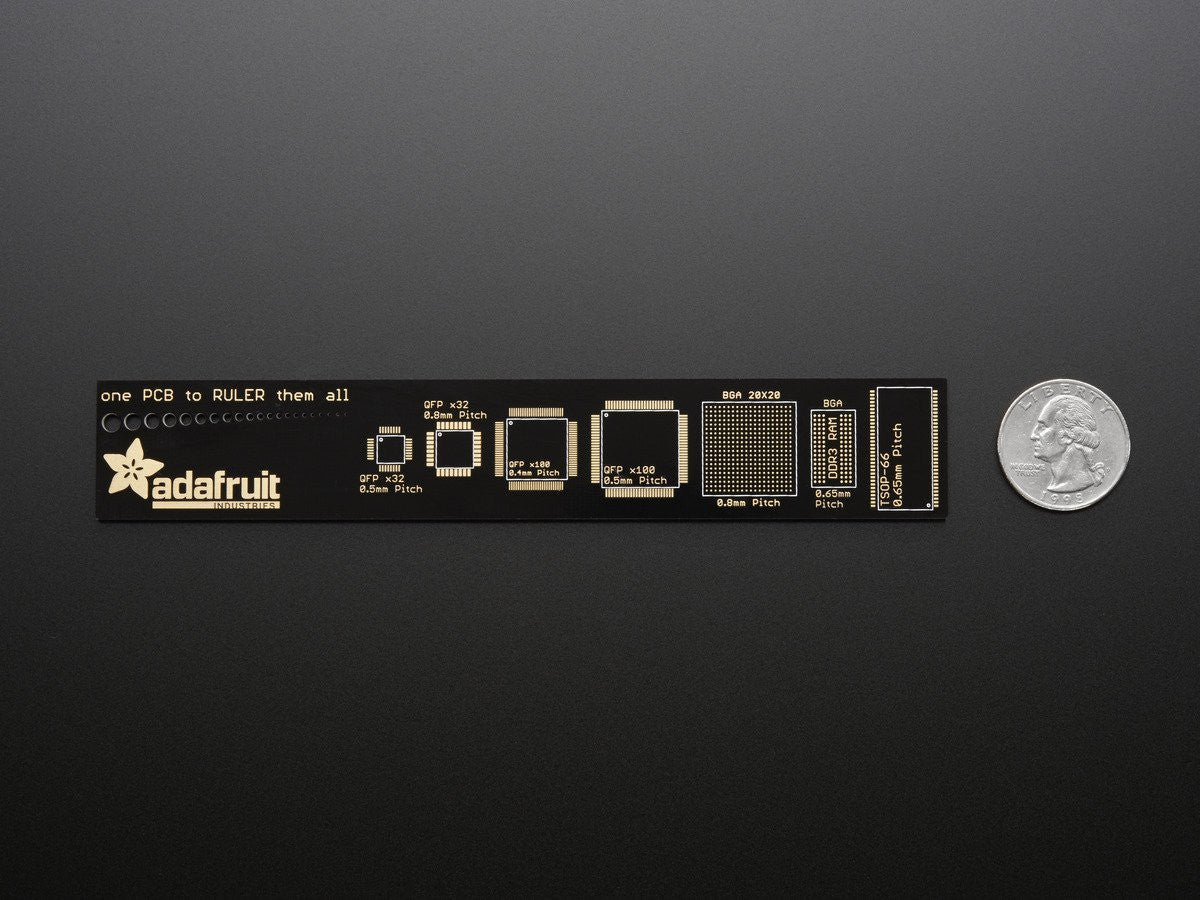

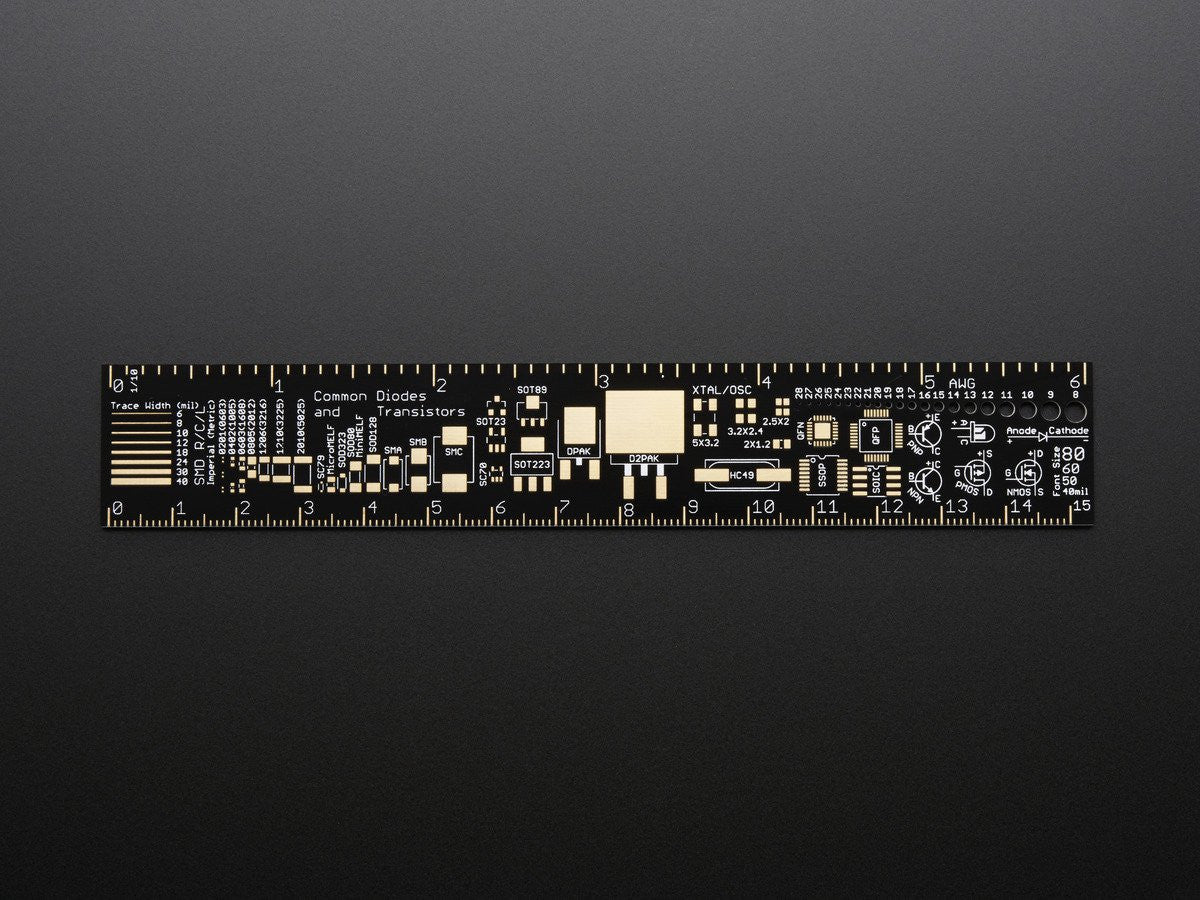

This PCB reference ruler is a great reference board to have right at your fingertips. Measuring approx 1" x 6", this standard-thickness FR4, gold plate ruler has the most common component packages you'll encounter. It also has font size guide, trace-width diagram, and a set of AWG-sized drills so you can gauge your wire thicknesses. Inches on this reference board are marked with 1/10" rather than the more common 1/8". The centimeter side is still 0.1cm marks.

SKU: K40
$4.90 $4.95
Maximum quantity available reached.
n/a
  • Dimensions: 25.6mm / 1" x 153.98mm / 6.06" x 1.64mm / 0.06"
  • Weight: 12.07g
