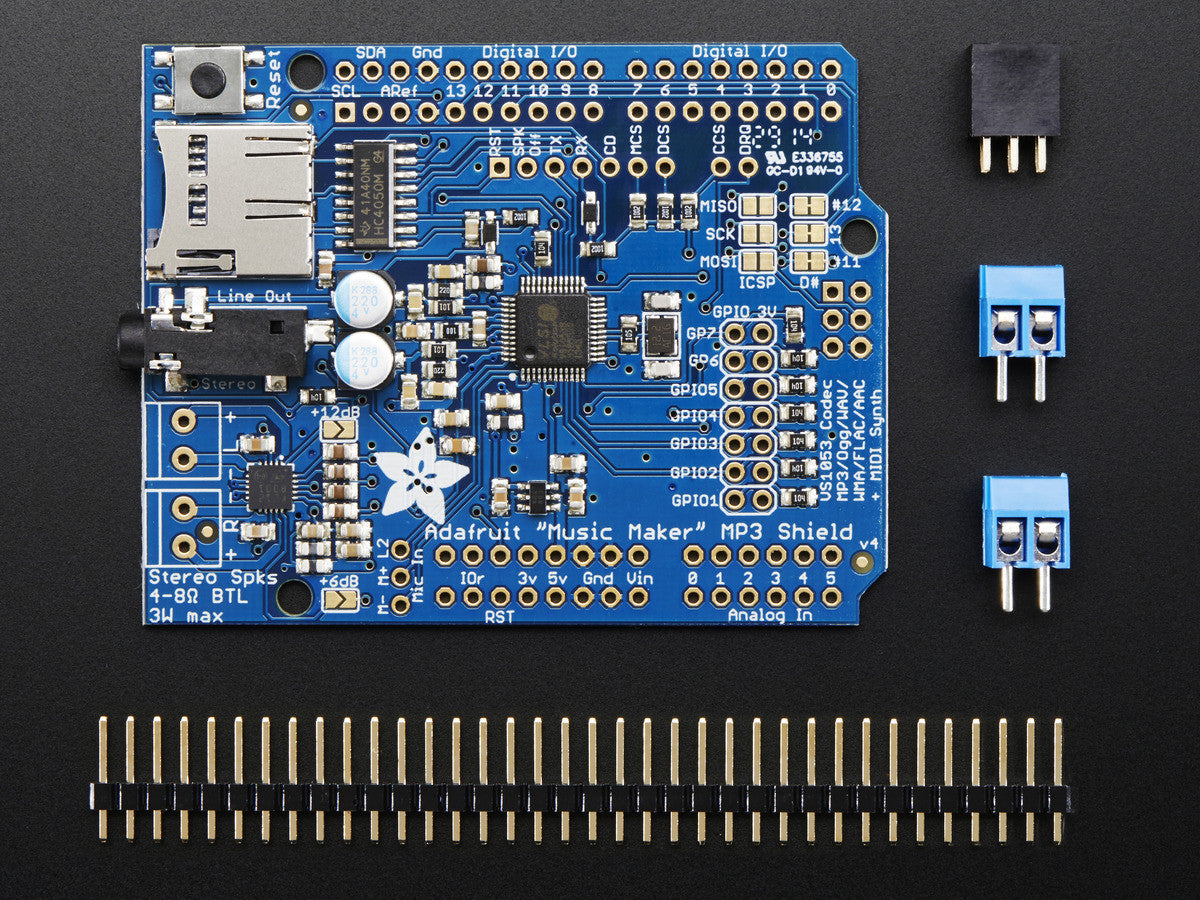

Adafruit "Music Maker" MP3 Shield for Arduino w/3W Stereo Amp

Product Description

Bend all audio files to your will with the Adafruit Music Maker shield for Arduino. This powerful shield features the VS1053, an encoding/decoding (codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV (PCM and ADPCM). It can also be used to record audio in both PCM (WAV) and compressed Ogg Vorbis. You can also control your sounds with features like: adjusting the bass, treble, and volume digitally.

All this functionality is implemented in a light-weight SPI interface so that any Arduino can play audio from an SD card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data from an Arduino pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects as well. The chip does need to be solder, and needs a lot of extras. That's why we spun up the best shield, perfect for use with any Arduino Uno, Leonardo or Mega.

$34.90 $34.95
Maximum quantity available reached.
  • Onboard 3W/channel stereo audio amplifier
  • 2 2-pin terminal blocks
  • A stick of 0.1" male header and 2x3 female header for the ICSP connection.
  • Stereo audio out with proper audio filter caps and ground reference so it can be safely connected directly to headphones, a stereo system or other powered speakers
  • 7 extra GPIO's that can be written or read through the Arduino Library for reading buttons or lighting LEDs
  • MicroSD card socket, for any FAT16/FAT32 formatted SD card from 64Mb or greater.
  • Full 3.3/5V level shifting for SD and MP3 chipsets
  • Built in MIDI synth/drum machine with dozens of instruments
  • Plenty of optional breakouts for pins like the card-detect and microphone input
Speakers, headphones, SD card and Arduino not included
  • Updated the analog section to have more filtering, which should improve audio output quality
  • Dimensions (assembled): 69mm x 53mm x 2mm / 2.7" x 2.1" x 0.8"
  • Weight: 14.7g
