Adafruit Bi-Color (Red/Green) 24-Bar Bargraph w/I2C Backpack

Product Description
These LEDS are a fun way to make a small linear display is to use two 12-bar Bi-color bar-graphs. However, this LED bargraph is 'multiplexed' - so to control all the 48 LEDs you need a lot of pins. There are driver chips that can help control a bar-graph/matrix for you but there's a lot of wiring to set up and they take up a ton of space. This backpack pairs perfectly with our bar-graphs and manages all the LED control and multiplexing.

The backpack uses a driver chip that does all the heavy lifting for you: It has a built in clock so it can multiplex the display. It uses constant-current drivers for ultra-bright, consistent color, 1/16 step display dimming, all via a simple I2C interface. The backpack comes with address-selection jumpers so you can connect up to eight of these bar-graphs on a single I2C bus. You can also mix-and-match the bar-graph breakout with our other types of I2C LED backpacks.
$9.90 $9.95
Maximum quantity available reached.

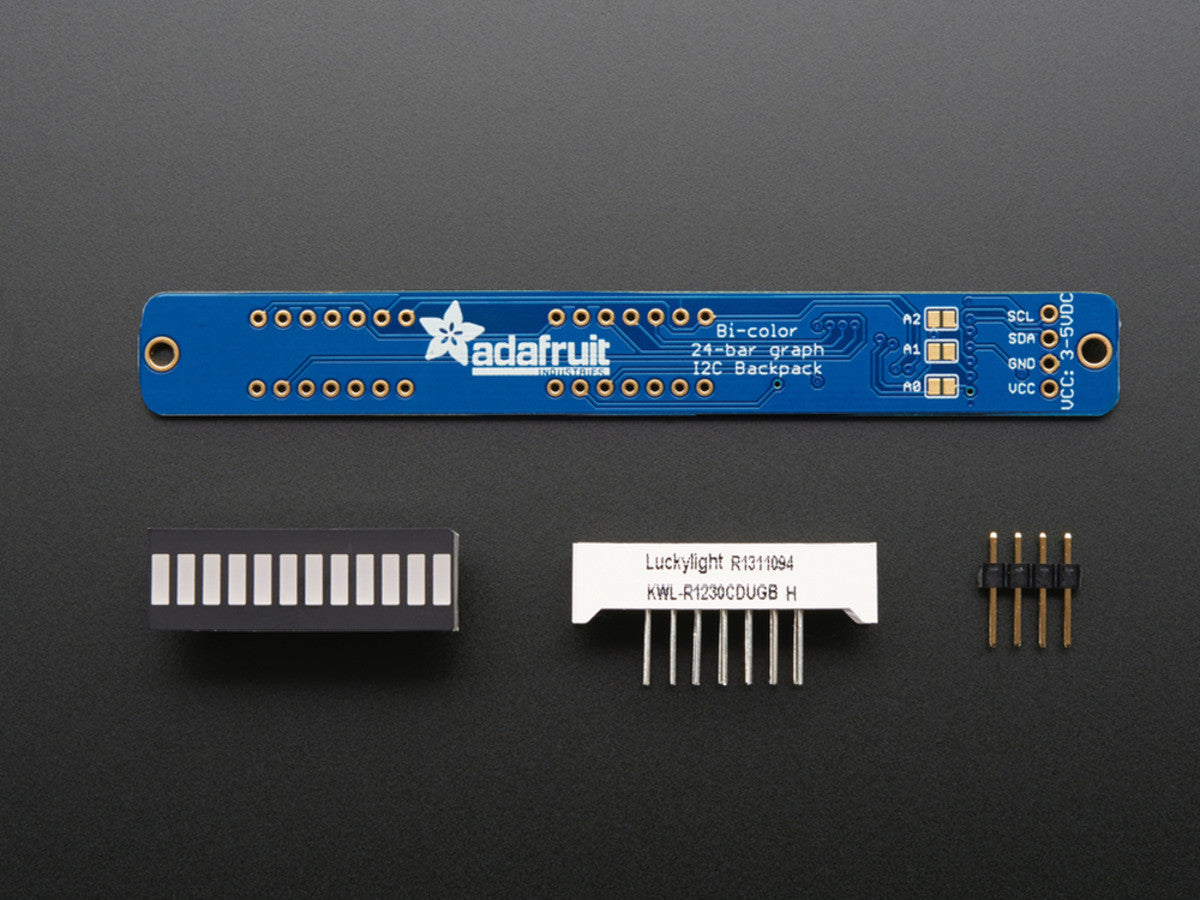

  • A fully tested and assembled LED backpack stick
  • Two 12 bar bi-color bar graphs
  • 4-pin header

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes.

  • Bargraph Dimensions: 10mm x 30mm ( 0.4" x 1.2")
  • 7mm (0.3") thick
  • Board Dimensions: 13mm x 101mm (.5" x 4")
