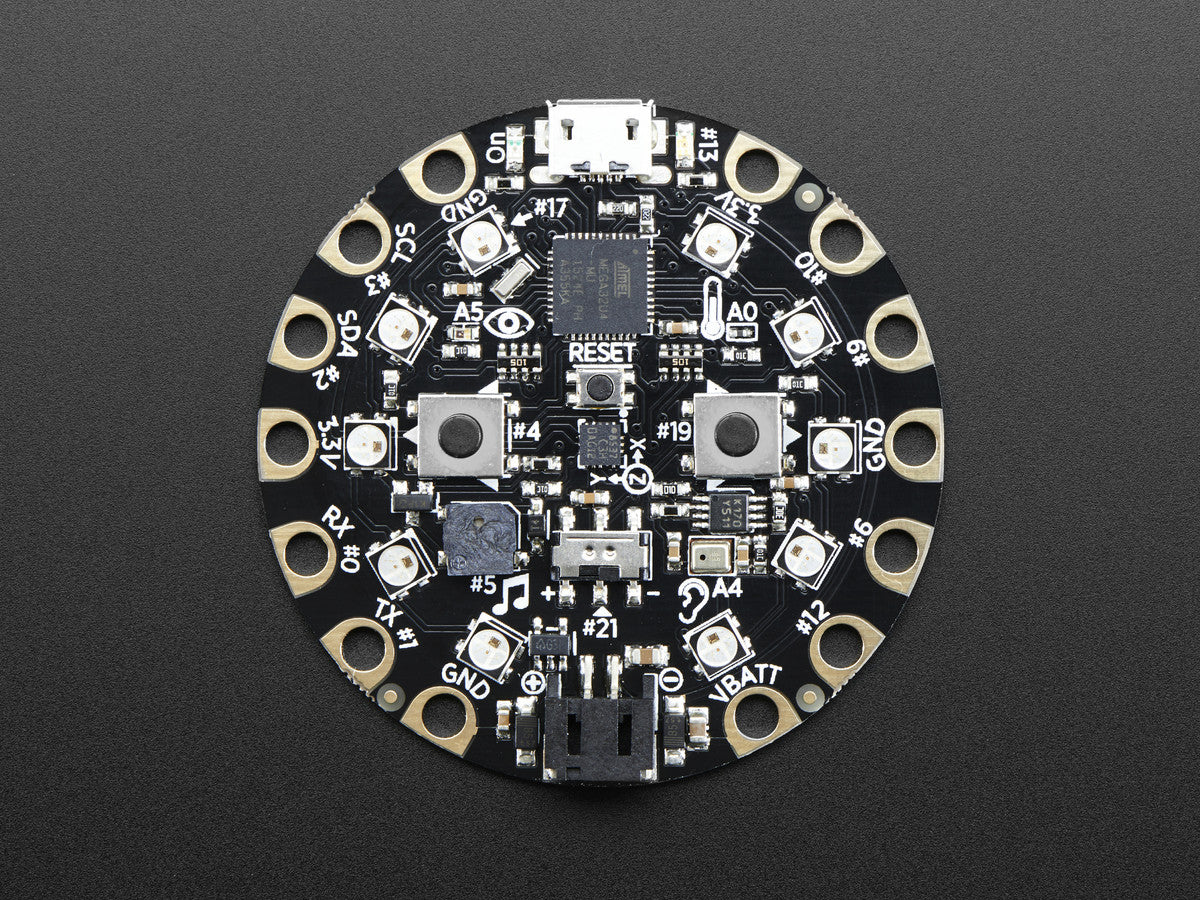

Adafruit Circuit Playground - Classic

Save $0.46
AdafruitSKU: K173
No reviews

KJD ELECTRONICS has stopped accepting orders.

This product might be available at PiShop.us.

Please check this blog post about our recent team merger!

Description

The Circuit Playground is the best way to practice programming on real hardware with no soldering or sewing required!

Circuit Playground features an ATmega32u4 processor. The board is also round and has alligator-clip pads around it so you don't have to solder or sew to make it work. You can power it from USB, a AAA battery pack, or with a Lipoly battery (for advanced users). Just program your code into the board then take it on the go!

  • ATmega32u4 Processor, running at 3.3V and 8MHz
  • MicroUSB port for programming and debugging with Arduino IDE
  • USB port can act like serial port, keyboard, mouse, joystick or MIDI

Circuit Playground has built-in USB support. Built in USB means you plug it in to program it and it just shows up.  All you really need is a Micro-B data/sync USB cable. The Circuit Playground has USB HID support, so it can act like a mouse or keyboard and attach directly to computers.



  • 10 x mini NeoPixels, each one can display any color
  • 1 x Motion sensor (LIS3DH triple-axis accelerometer with tap detection, free-fall detection)
  • 1 x Temperature sensor (thermistor)
  • 1 x Light sensor (phototransistor)
  • 1 x Sound sensor (MEMS microphone)
  • 1 x Mini speaker (magnetic buzzer)
  • 2 x Push buttons, left and right
  • 1 x Slide switch
  • 8 x alligator-clip friendly input/output pins
  • All 8 pads can act as capacitive touch inputs
  • Green "ON" LED so you know its powered
  • Red "#13" LED for basic blinking
  • Reset button

This item does not include a Micro USB Cable

  • Outer Diameter: ~50.6mm / ~2.0"
  • Weight: 8.5g
