Description

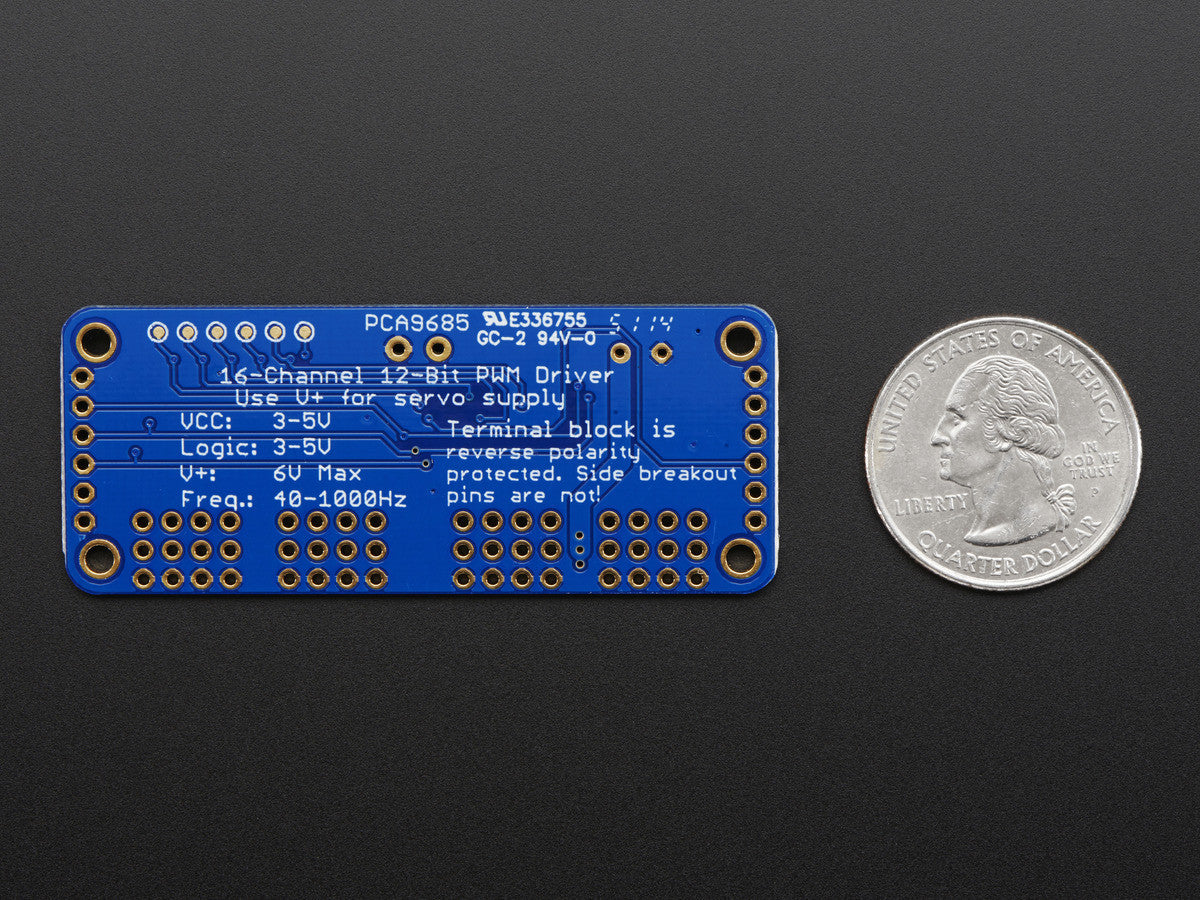

This PWM and Servo driver breakout chip is incredibly useful and efficient for your next project. Using only two pins, control 16 free-running PWM outputs. You can even chain up 62 breakouts to control up to 992 PWM outputs. As well, it is 5V compliant - which means it can control from a 3.3V microcontroller and still safely drive up to 6V outputs. Finally, it has a 12-bit resolution for each output.

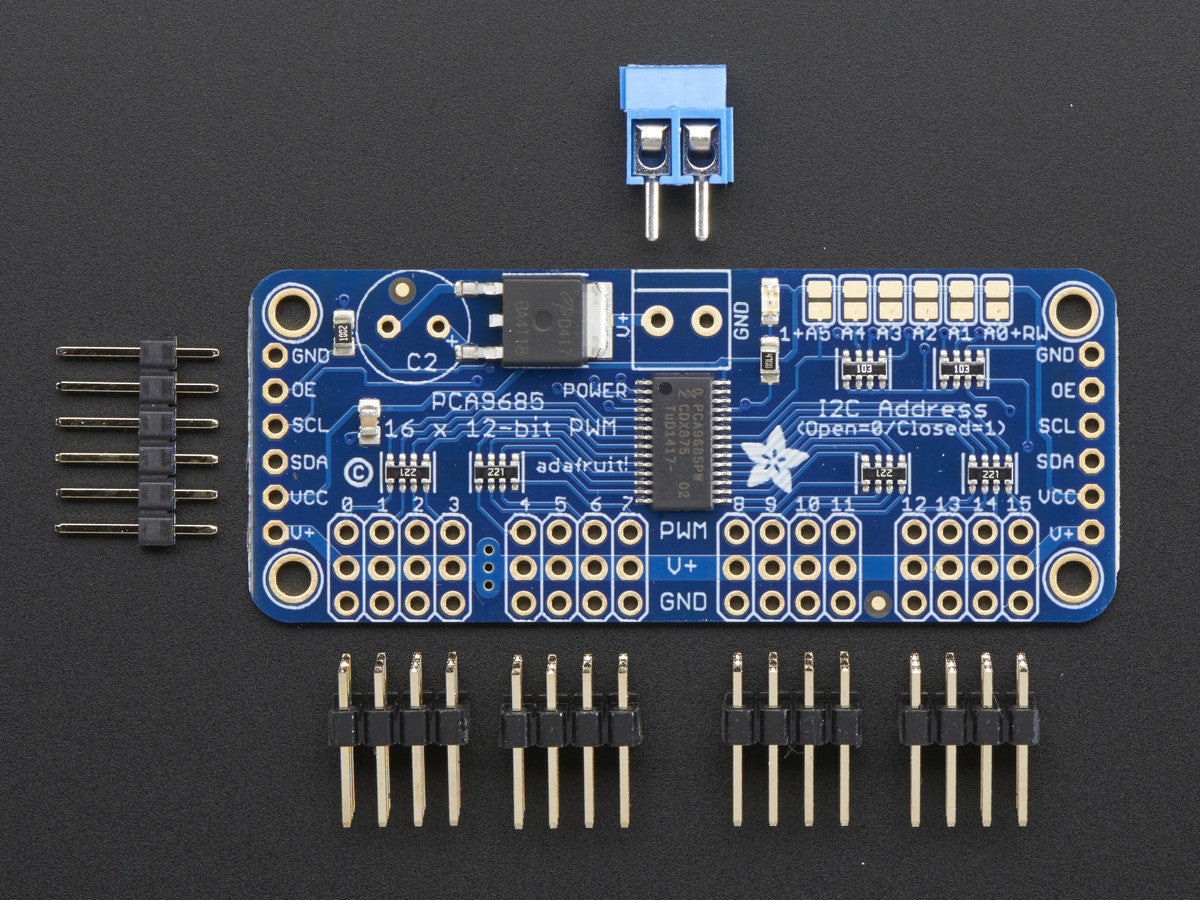

- Terminal block for power input
- Reverse polarity protection on the terminal block input
- Green power-good LED
- 3 pin connectors in groups of 4 so you can plug in 16 servos at once
- 220 ohm series resistors on all the output lines
- Solder jumpers for the 6 address select pins
- Dimensions (no headers or terminal block) 2.5" x 1" x 0.1" (62.5mm x 25.4mm x 3mm)
- Weight (no headers or terminal block): 5.5grams
- Weight (with 3x4 headers & terminal block): 9grams
- This board/chip uses I2C 7-bit address between 0x60-0x80, selectable with jumpers
