{"id":10236206152,"title":"Adafruit Industries 12VDC 32-Step Stepper Motor","handle":"adafruit-12vdc-32-step-small-reduction-stepper-motor","description":"\u003cdiv\u003e\n\u003cspan\u003eThis is a great first stepper motor, good for small projects and experimenting with steppers. This uni-polar motor has a built in mounting plate with two mounting holes. There are only 32 step (11.25 degree) per revolution, and inside is a 1\/16 reduction gear set. The shaft is flattened so its easy to attach stuff to it with a set-screw. A perfect first stepper motor and works well with the Motor Shield for Arduino.\u003c\/span\u003e\u003cbr\u003e\u003cbr\u003e\u003cspan\u003eThe gearing has a few side effects which are important to note. First, \u003c\/span\u003e\u003cb\u003eyou can turn the stepper by hand but not as smoothly as an un-geared stepper\u003c\/b\u003e\u003cspan\u003e. It also means you shouldn't use interleaved or micro-stepping to control or it will take forever to turn. Instead use single or double stepping. The torque is fairly high but its slower than un-geared steppers - we maxed out at about 80 RPM when powering with 12VDC and about 50 RPM on 9VDC.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003e. \u003c\/span\u003e\n\u003c\/div\u003e","published_at":"2017-07-20T16:52:02-04:00","created_at":"2017-07-20T17:05:21-04:00","vendor":"Adafruit","type":"Adafruit","tags":["Motor","Robotics"],"price":490,"price_min":490,"price_max":490,"available":true,"price_varies":false,"compare_at_price":495,"compare_at_price_min":495,"compare_at_price_max":495,"compare_at_price_varies":false,"variants":[{"id":41239774088,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"K272","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Adafruit Industries 12VDC 32-Step Stepper Motor","public_title":null,"options":["Default Title"],"price":490,"weight":0,"compare_at_price":495,"inventory_quantity":2,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-03.jpg?v=1500584930","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-05.jpg?v=1500584932","\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-04.jpg?v=1500584934"],"featured_image":"\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-03.jpg?v=1500584930","options":["Title"],"media":[{"alt":null,"id":515166765091,"position":1,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-03.jpg?v=1500584930"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-03.jpg?v=1500584930","width":1200},{"alt":null,"id":515166797859,"position":2,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-05.jpg?v=1500584932"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-05.jpg?v=1500584932","width":1200},{"alt":null,"id":515166830627,"position":3,"preview_image":{"aspect_ratio":1.333,"height":900,"width":1200,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-04.jpg?v=1500584934"},"aspect_ratio":1.333,"height":900,"media_type":"image","src":"https:\/\/cdn.shopify.com\/s\/files\/1\/1749\/9663\/products\/918-04.jpg?v=1500584934","width":1200}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cdiv\u003e\n\u003cspan\u003eThis is a great first stepper motor, good for small projects and experimenting with steppers. This uni-polar motor has a built in mounting plate with two mounting holes. There are only 32 step (11.25 degree) per revolution, and inside is a 1\/16 reduction gear set. The shaft is flattened so its easy to attach stuff to it with a set-screw. A perfect first stepper motor and works well with the Motor Shield for Arduino.\u003c\/span\u003e\u003cbr\u003e\u003cbr\u003e\u003cspan\u003eThe gearing has a few side effects which are important to note. First, \u003c\/span\u003e\u003cb\u003eyou can turn the stepper by hand but not as smoothly as an un-geared stepper\u003c\/b\u003e\u003cspan\u003e. It also means you shouldn't use interleaved or micro-stepping to control or it will take forever to turn. Instead use single or double stepping. The torque is fairly high but its slower than un-geared steppers - we maxed out at about 80 RPM when powering with 12VDC and about 50 RPM on 9VDC.\u003c\/span\u003e\u003cbr\u003e\u003cspan\u003e. \u003c\/span\u003e\n\u003c\/div\u003e"}

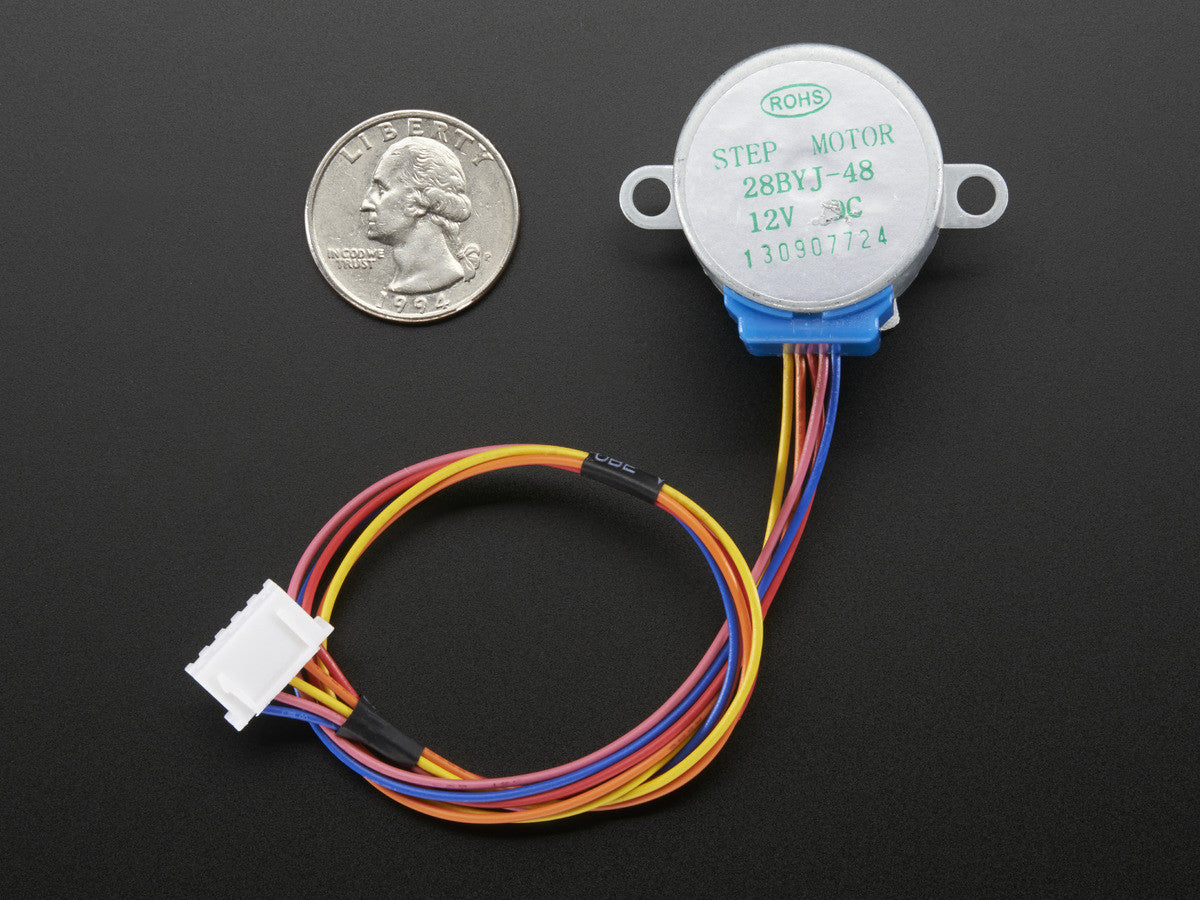

Adafruit Industries 12VDC 32-Step Stepper Motor
- Unipolar stepper with 0.1" spaced 5-pin cable connector
- Connection cables
- 32 steps per revolution
- 1/16.025 geared down reduction
- 5V-12V DC suggested operation
- Weight: 37 g.
- Dimensions: 28mm diameter, 20mm tall not including 9mm shaft with 5mm diameter
- 9" / 23 cm long cable
- Holding Torque @ 12VDC: 250 gram-force*cm, 25 N*mm/ 3.5 oz-force*in
- Shaft: 5mm diameter flattened
- Arduino Stepper library
- Some helpful schematics:
