Adafruit White LED Backlight Module - Medium 23mm x 75mm

Save $0.05
AdafruitSKU: K171
No reviews

Price:
Sale price $2.45 Regular price$2.50
Automatic 10% Discount Available
Create an account and Sign Up for our Newsletter to get Adafruit Member Pricing and Save 10% on Adafruit Products like this!
Stock:
In stock (50 units), ready to be shipped
Buy On Amazon

Description

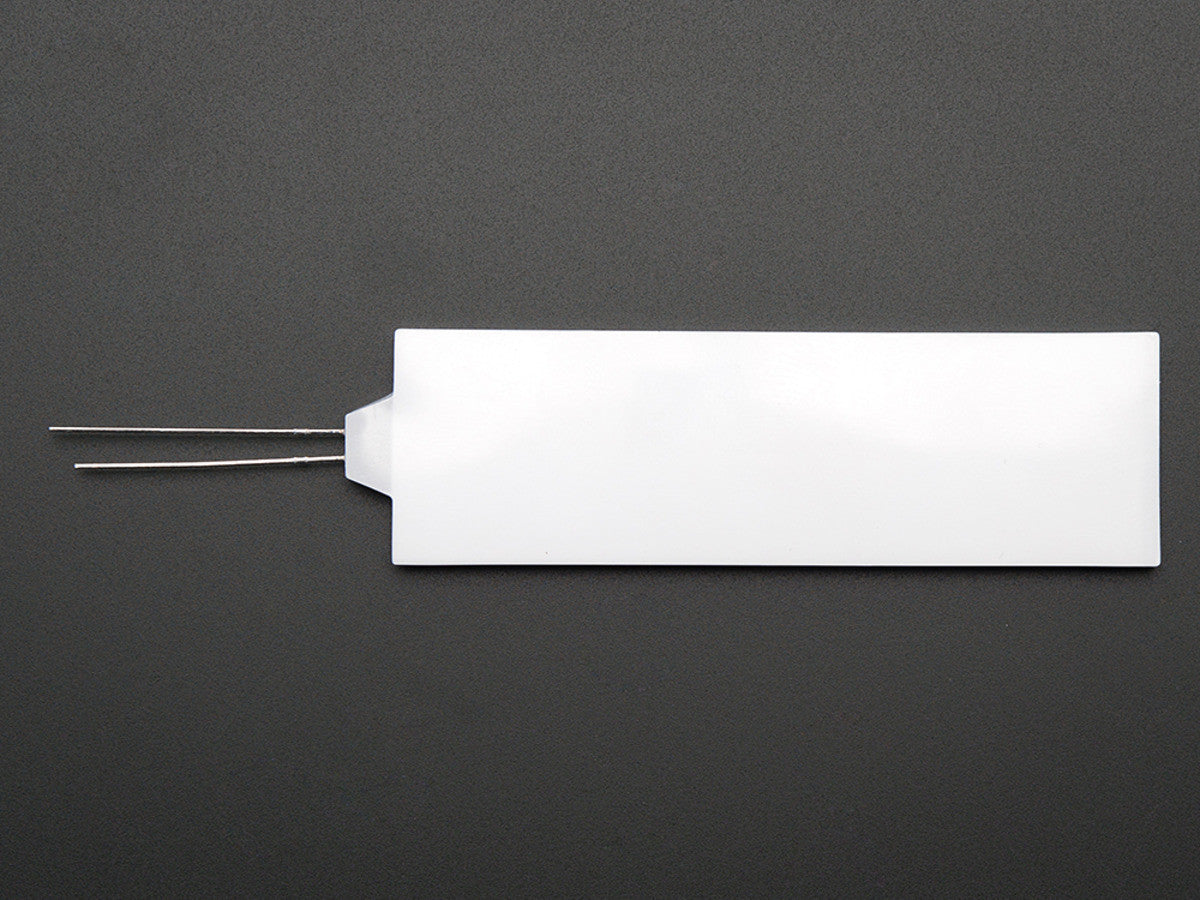

These pretty strips of light are plastic diffused backlights, often seen in LCD displays. Normally they're tucked behind the LCD and shine white light from below. Here, we've got the LEDs available individually. Each LED is encased in a 3.5mm thick strip of a acrylic. The acrylic strip is a special type that is very good at diffusing light, so even though there is only one single white LED, it provides near-uniform lighting. The other flat side of the strip has a reflector on it so you only get light from the top.

You can treat this backlight just like an LED, light with ~3V at 20mA current and you get a pretty shape that you can mask with vinyl or draw over with marker. Gels can be used to change the color.

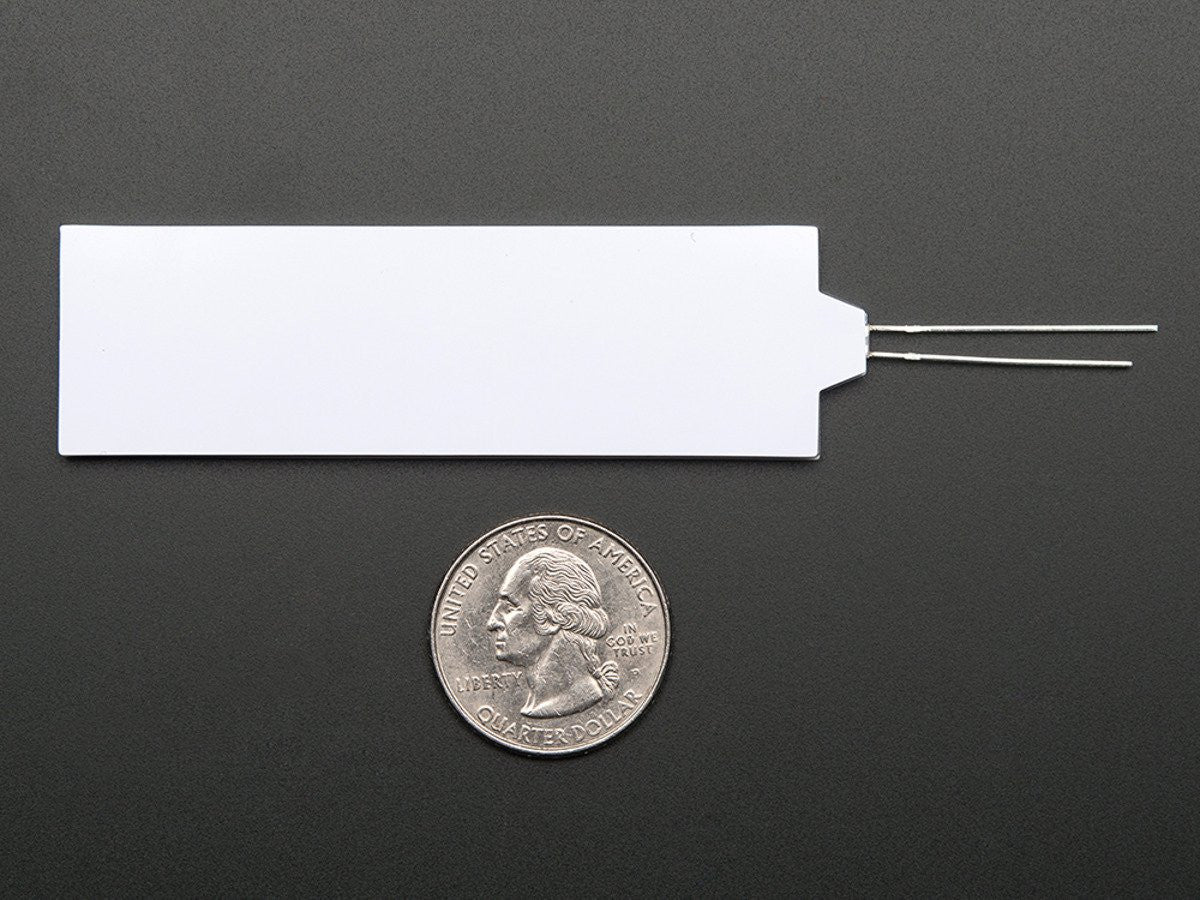

  • Dimensions: 107.5mm x 22.6mm x 2.7mm / 4.2in x 0.8in x 0.1in
  • Weight: 5.6g
