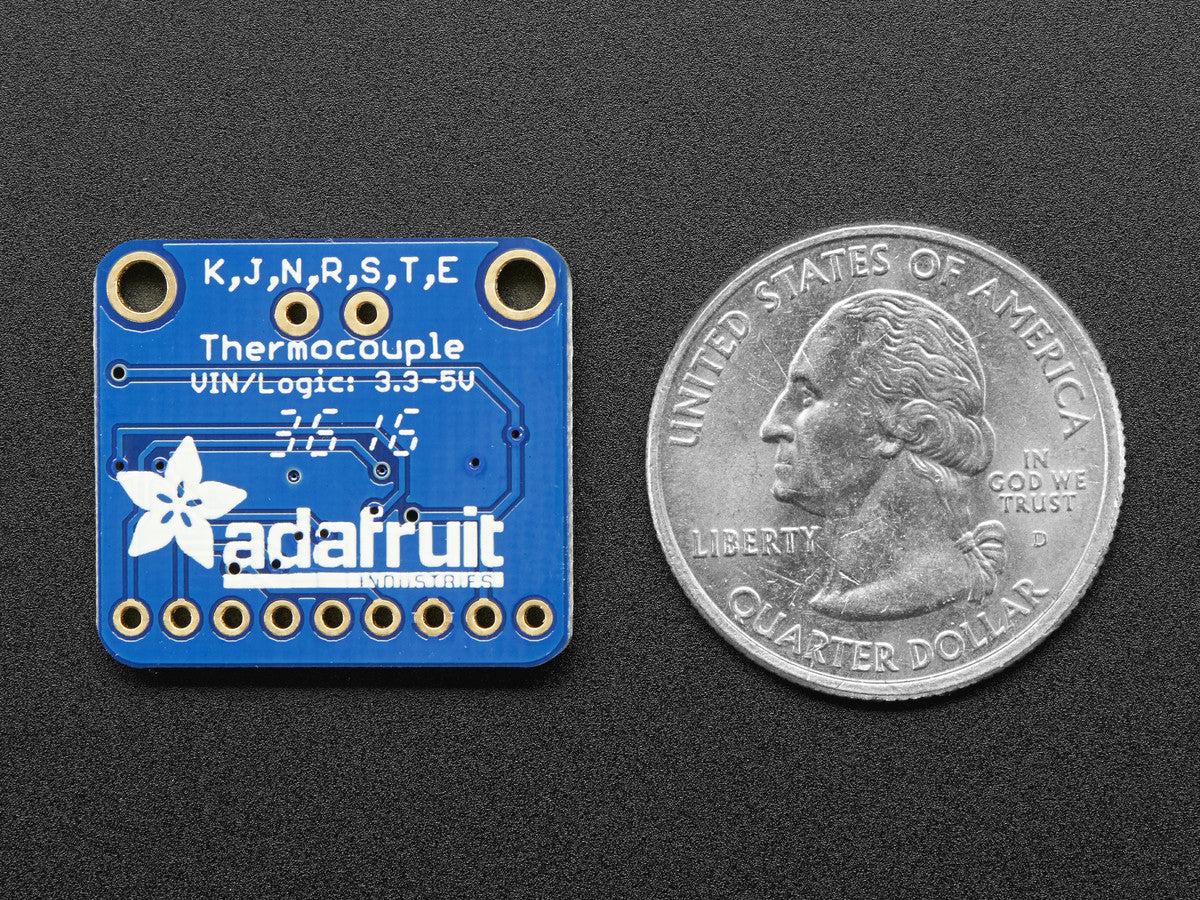

Adafruit Thermocouple Amplifier MAX31856 Breakout

Save $0.05
AdafruitSKU: K254
No reviews

Price:
Sale price $17.45 Regular price$17.50
Automatic 10% Discount Available
Create an account and Sign Up for our Newsletter to get Adafruit Member Pricing and Save 10% on Adafruit Products like this!
Stock:
Sold out
Buy On Amazon

Description

Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference, as well as calculations to handle any non-linearities. With Adafruit's new release, we are happy to now offer a great new thermocouple amplifier/converter that can handle just about any type of thermocouple, and even has the ability to give you notification when the temperature goes out of range, or a fault occurs.

This breakout does everything for you, and can be easily interfaced with any microcontroller, even one without an analog input. Please note: this does not include a thermocouple!

  • The chip itself
  • 3.3V regulator and level shifting circuitry, all assembled and tested

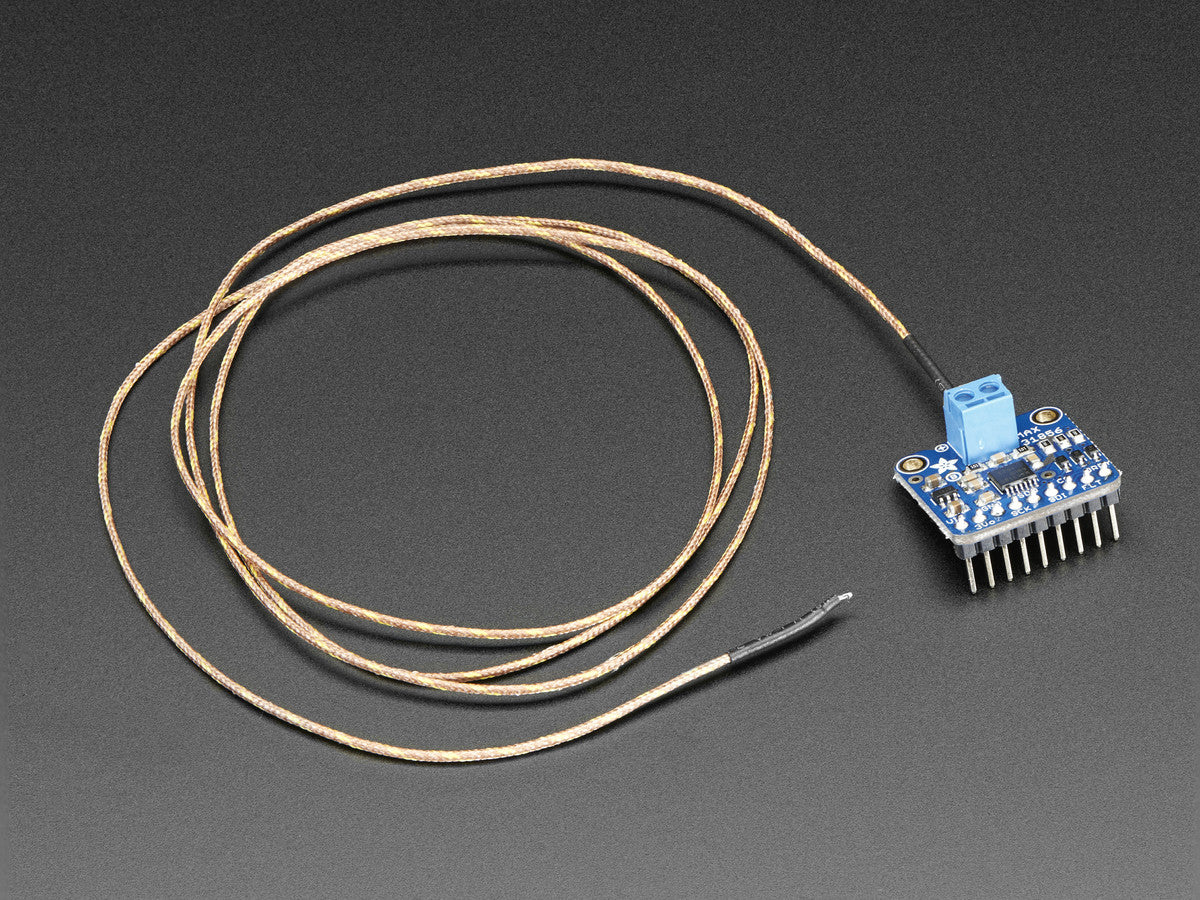

  • A 2 pin terminal block (for connecting to the thermocouple)
  • pin header (to plug into any breadboard or perfboard)
  • Inline resistors and a filter capacitor on-board for better stability
  • Works with any K, J, N, R, S, T, E, or B type thermocouple
  • -210°C to +1800°C output in 0.0078125° resolution
  • 3.3 to 5v power supply and logic level compliant!
  • SPI data requires any 4 digital I/O pins
  • Product Dimensions: 25.0mm x 22.0mm x 3.0mm / 1.0" x 0.9" x 0.1"\
  • Product Weight: 3.5g / 0.1oz
