Adafruit Perma-Proto Half-sized Breadboard PCB - 3 Pack

Save $0.05
AdafruitSKU: K230
No reviews

Price:
Sale price $12.45 Regular price$12.50
Automatic 10% Discount Available
Create an account and Sign Up for our Newsletter to get Adafruit Member Pricing and Save 10% on Adafruit Products like this!
Stock:
In stock (66 units), ready to be shipped
Buy On Amazon

Description

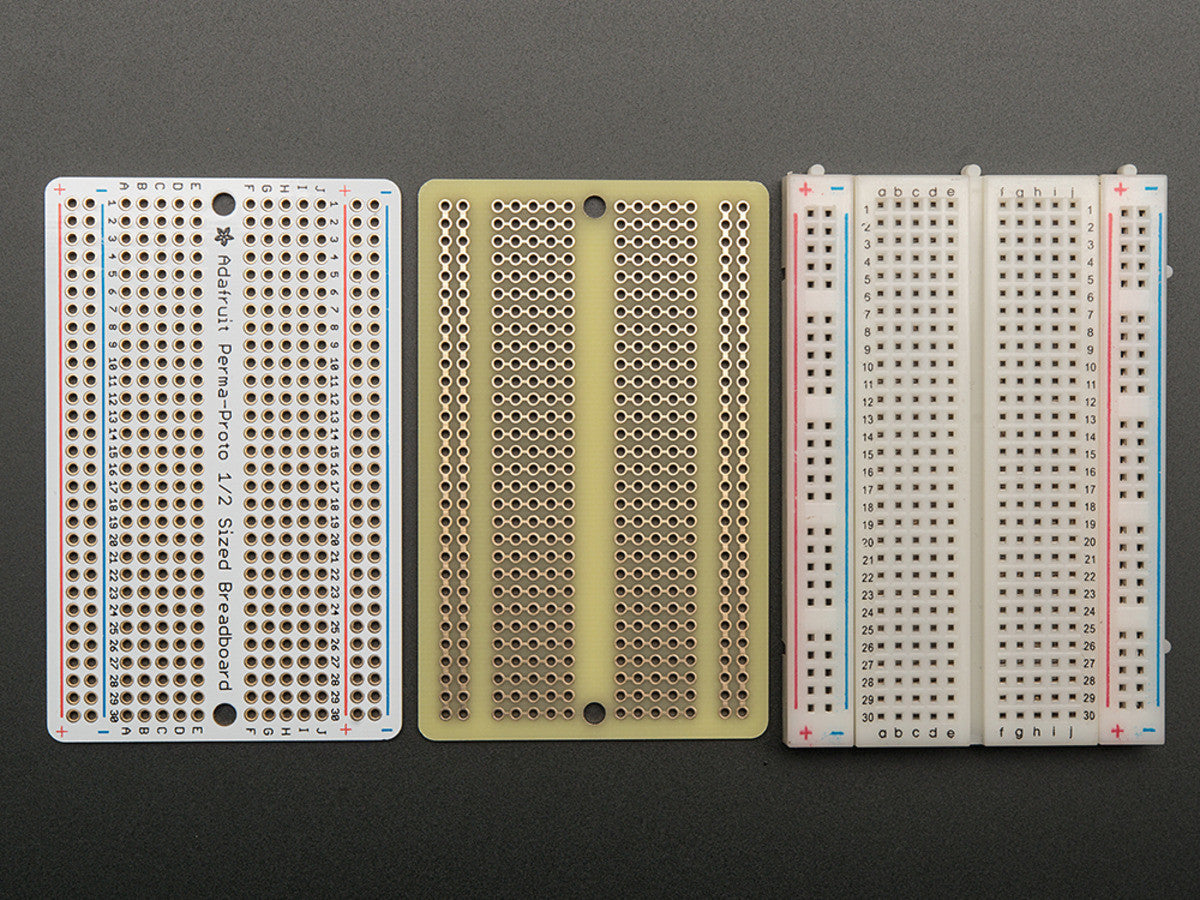

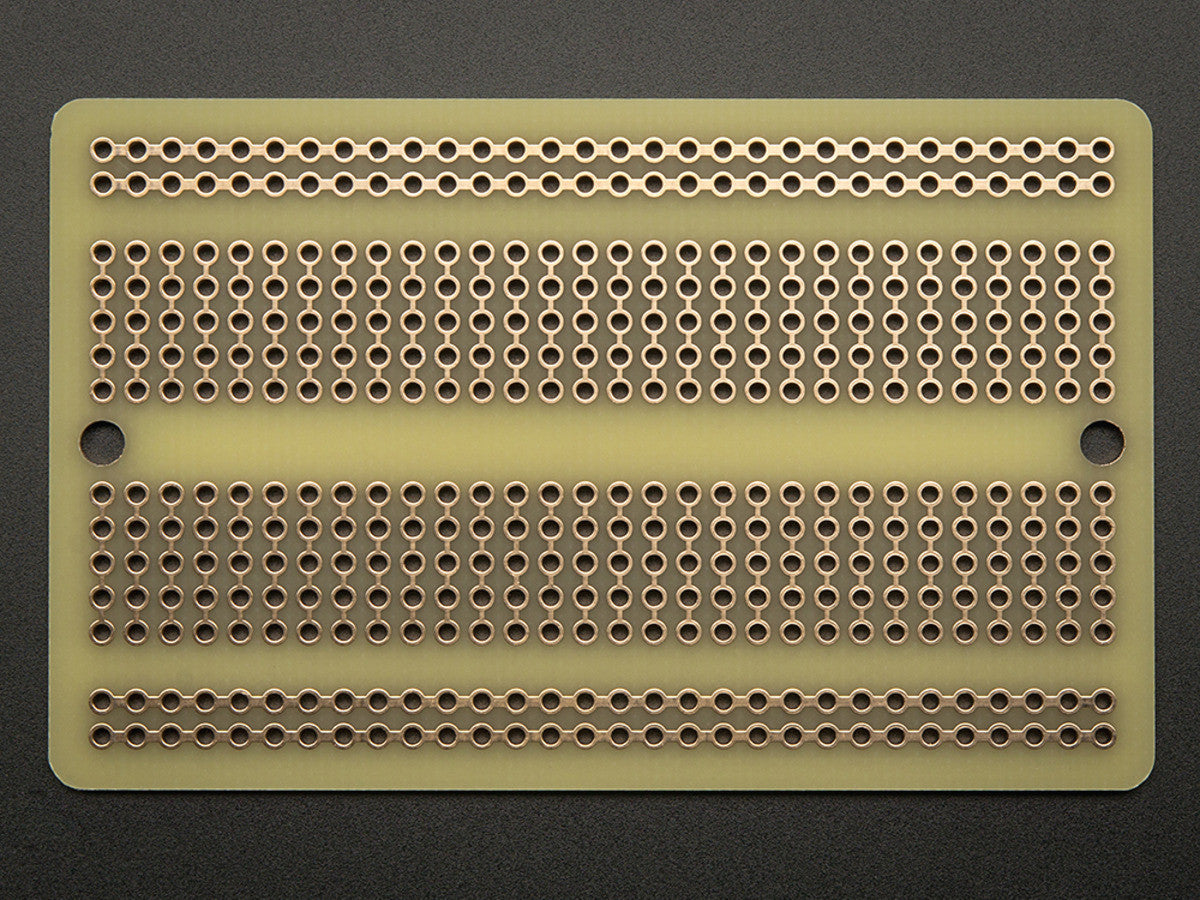

This proto-board is the PCB you always wish you had, but never realized it. Adafruit took the basic layout of a half-sized breadboard and turned that into a beautiful PCB. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy. The bottom has the 5-hole pad design that matches a classic breadboard, with 4 power bus lines on the sides, and no mask so you can easily cut traces when necessary. 1.2mm diameter drill holes are used so even parts with big leads will fit. All holes are thru-plated for strength- these wont peel off with rework. The finish is a gold plate. There are also two mounting holes so you can attach the PCB to your project box.

  • Comes with 3 boards
  • 30 rows of double 5-hole rows
  • 4 power rails with positive/negative markings
  • 3.2" x 2.0" (81mm x 51mm), 0.063" thick FR4
  • 1.2mm / 0.047" drill holes
  • 2 x 0.125" or 3.2mm mounting holes 2.9" apart
